适用人群：本FAQ适用于所有Seestar系列产品用户，包括天文爱好者、摄影爱好者和入门级用户。
Applicable Users: This FAQ applies to all users of Seestar series products, including astronomy enthusiasts, photography enthusiasts, and entry-level users.
内容更新：FAQ内容将根据产品更新和用户反馈定期更新，建议用户关注最新版本。
Content Update: FAQ content will be regularly updated based on product updates and user feedback. Users are advised to follow the latest version.
问题反馈：如发现FAQ中未涵盖的问题或需要进一步解释的内容，请通过官方渠道联系技术支持。
Problem Feedback: If you find issues not covered in the FAQ or content that requires further explanation, please contact technical support through official channels.
语言版本：本FAQ提供中英文对照版本，方便不同地区用户查阅。
Language Version: This FAQ provides a bilingual version in both Chinese and English for easy reference by users in different regions.
图片说明：FAQ中包含的图片均为产品实际拍摄效果或操作界面截图，仅供参考。
Image Description: All images included in the FAQ are actual product shots or screenshots of the operating interface, provided for reference only.
一、Seestar系列通用问题 | 1. General Issues with the Seestar Series

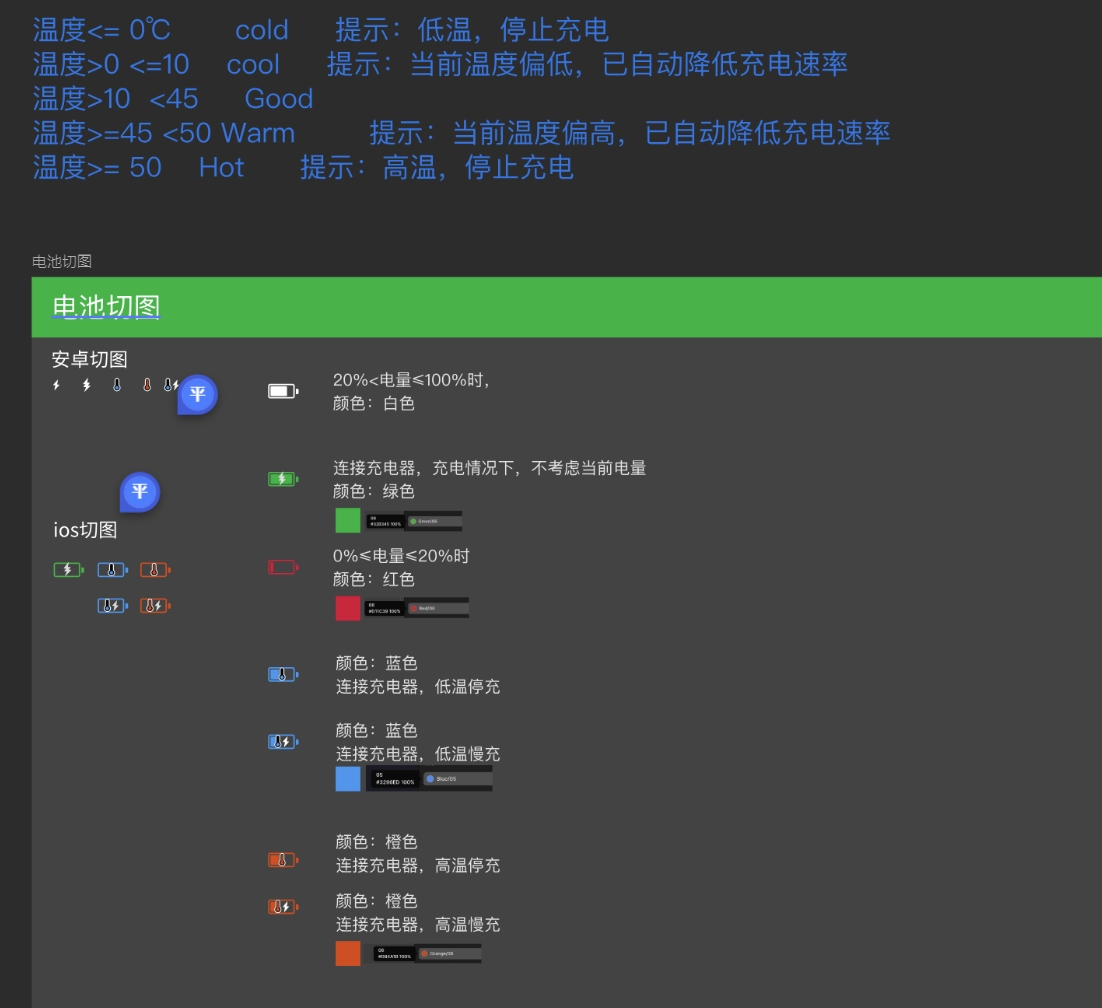

Q1: Seestar APP中电量图标的含义是什么？ | Q1: What does the battery icon in the Seestar APP mean?
A: Seestar APP中的电池图标颜色用于表示当前电量状态和充电情况，具体含义如下：
A: The color of the battery icon in the Seestar APP is used to indicate the current battery level status and charging status, with the specific meanings as follows:
- 白色：未在充电，电量在25% < 电量 ≤ 100%
- White: Not charging, battery level between 25% < battery level ≤ 100%
- 红色：未在充电，电量在0% < 电量 ≤ 25%
- Red: Not charging, battery level is 0% < battery level ≤ 25%
- 绿色：正在充电，处于正常充电状态
- Green: Charging, in normal charging state
- 蓝色（电池框内有温度计，无闪电）：已连接充电器，但因低温（<0℃）触发停充保护
- Blue (thermometer inside battery frame, no lightning bolt): Charger connected, but charging stopped due to low temperature (<0°C) triggering protection
- 蓝色（电池框内有温度计，有闪电）：已连接充电器，因低温（0℃<温度≤10℃）处于慢速充电状态
- Blue (with thermometer and lightning inside the battery frame): Charger connected, in slow charging state due to low temperature (0°C < temperature ≤ 10°C)
- 橙色（电池框内有温度计，无闪电）：已连接充电器，但因高温触发停充保护
- Orange (thermometer inside battery frame, no lightning bolt): Charger connected, but charging stopped due to overheating triggering protection
- 橙色（电池框内有温度计，有闪电）：已连接充电器，因高温处于慢速充电状态
- Orange (thermometer and lightning symbol inside battery frame): Charger connected, in slow charging state due to high temperature
Q2: Seestar产品的跨区激活问题 | Q2: Cross-region activation issue of Seestar products
A: ZWO Seestar系列产品区分中国版和海外版，中国版仅支持中国大陆、香港、澳门地区激活，在其他区域无法激活使用，且不享受保修服务。激活后，设备即可在全球范围内使用。若您的设备是在购买当地激活的，可以跨区域使用，但未激活的设备需要在购买地区激活后再带出。
A: ZWO Seestar products are divided into a China version and an overseas version. The China version can only be activated in mainland China, Hong Kong, and Macau. Activation is not supported in other regions, nor is warranty service available there. Once activated, the device can be used worldwide. If your device was activated in the region of purchase, it can be used across regions. Unactivated devices must be activated in the region of purchase before being taken to other regions.
Q3: Seestar系列产品的存储容量和实际可用空间 | Q3: Storage capacity and actual available space of Seestar series products
A: Seestar系列产品的存储容量和实际可用空间如下：
A: The storage capacity and actual available space of Seestar series products are as follows:
- S30 Pro：内置128GB存储空间，其中约100GB可供用户实际使用
- S30 Pro: Built-in 128GB storage space, of which approximately 100GB is actually available for users
- S30和S50：内置64GB存储空间，出厂时可用空间为约50GB
- S30 and S50: Built-in 64GB storage space, with approximately 50GB available at the time of factory shipment
Q4: Seestar系列产品的工作环境温度范围 | Q4: Operating environment temperature range of Seestar series products
A: Seestar系列产品的工作环境温度范围为-10℃-40℃，充电温度为0℃-40℃。
A: The operating temperature range of Seestar series products is -10°C to 40°C, and the charging temperature is 0°C to 40°C.
Q5: Seestar系列产品的电池容量和续航表现 | Q5: Battery capacity and endurance performance of Seestar series products
A: Seestar系列产品内置6000mAh高容量电池，在正常观测与拍摄条件下，整机续航时间可达约6小时，能够满足完整一晚的观测需求。
A: The Seestar series products are equipped with a built-in 6000mAh high-capacity battery. Under normal observation and shooting conditions, the overall device's battery life can reach approximately 6 hours, meeting the observation needs for a full night.
| 产品名称 | 锂离子电池组 |
|-|-|
| 型号 | CH-18650-1S2P 20230606 1INR19/66-2 |
| 充电电压 | 4.2V |
| 额定容量 | 6000mAh |
| 额定电压 | 3.7V |
| 额定功率 | 22.2Wh |
| Name | Lithium-ion Battery Pack |
|-|-|
| Type | CH-18650-1S2P 20230606 1INR19/66-2 |
| Max Charge Volt | 4.2V |
| Rated Capacity | 6000mAh |
| Rated Volt | 3.7V |
| Rated Power | 22.2Wh |
Q1：Seestar 拍深空，帧数和时间多少才合适？
Q1: How many frames/how long should I shoot with Seestar for deep sky objects?
没有统一固定值，主要根据您所在环境的 光污染等级决定，大致分为两种情况：
- 城市强光害环境（Bortle 8–9）建议总帧数 4000–6000 帧，对应累计曝光 1–2 小时。
- 郊区 / 暗夜低光害环境（Bortle 1–4）建议总帧数 8000–12000 帧，对应累计曝光 2.5–4 小时。
There is no universal fixed number—it mainly depends on your local light pollution (Bortle class):
- Urban / heavy light pollution (Bortle 8–9)Recommended total frames: 4000–6000 framesTotal integration time: approx. 1–2 hours (at 10s per frame)
- Dark skies / low light pollution (Bortle 1–4, suburbs, mountains, dark parks)Recommended total frames: 8000–12000 framesTotal integration time: approx. 2.5–4 hours (at 10s per frame)
Q2：城市里为什么不能一直拍、一直叠加？
Q2: Why shouldn’t I keep shooting longer in urban areas?
在强光害环境下，拍摄时间并非越长越好：
1. 光污染会限制信噪比上限，天体信号被背景光淹没，再叠加更多帧数也难以提升画质。
2. Seestar 采用非制冷传感器，长时间拍摄会使热噪明显增加，反而影响画质。
3. 叠加到一定帧数后会出现边际效应，画质提升极小，但占用存储空间和处理时间大幅增加。
因此城市拍摄建议控制在 2 小时以内。
More frames do not always mean better images under heavy light pollution:
1. Light pollution limits SNR – celestial signal is overwhelmed by skyglow; extra frames mostly add noise.
2. Sensor heating – Seestar uses an uncooled sensor; long exposures increase thermal noise.
3. Diminishing returns – beyond 4000–6000 frames, visible quality improvement is minimal, while file size and processing time increase significantly.
Thus, we recommend limiting urban sessions to under 2 hours.
Q3：低光害环境为什么反而要拍更久？
Q3：Why should I shoot longer under dark skies?
在光污染很弱的优质环境下：
1. 夜空更黑，传感器能接收到更微弱、更纯净的天体信号，每多一帧都在有效提升画质。
2. 星系、星云的暗弱结构、云气层次需要更长时间才能 “显现”。
3. 夜间温度更低，传感器散热更好，更适合长时间连续拍摄。
简单说：环境越黑，越值得多拍。
Under low light pollution:
1. Each frame captures clean, usable signal with less skyglow interference.
2. Faint structures like nebula details, galactic halos, and IFN require longer integration to reveal.
3. Lower ambient temperature improves sensor cooling, making long exposures more efficient.
Simply put: The darker the sky, the more you benefit from longer exposures.
Q4：不同目标分别拍多久比较合适？
Q4: Recommended frames by target type (10s per frame)
以单帧 10 秒为例：
城市环境（Bortle 8–9）
- 亮星云、星系（M42、M31）：4000–5000 帧，约 1–1.5 小时
- 暗星云、反射星云：5000–6000 帧，约 1.5–2 小时
- 星团、行星状星云：3000–4000 帧，约 1 小时
低光害环境（Bortle 1–4）
- 亮星云、大星系：8000–10000 帧，约 2.5–3 小时
- 暗星云、IFN 等微弱结构：10000–12000 帧，约 3–4 小时
- 星团、行星状星云：6000–8000 帧，约 2–2.5 小时
Urban / Bortle 8–9
- Bright nebulae & galaxies (M42, M31): 4000–5000 frames | \~1–1.5 hours
- Dark nebulae & reflection nebulae: 5000–6000 frames | \~1.5–2 hours
- Star clusters & planetary nebulae: 3000–4000 frames | \~1 hour
Dark skies / Bortle 1–4
- Bright nebulae & large galaxies: 8000–10000 frames | \~2.5–3 hours
- Faint nebulae, IFN & faint structures: 10000–12000 frames | \~3–4 hours
- Star clusters & planetary nebulae: 6000–8000 frames | \~2–2.5 hours
Q5：拍太阳、月亮、行星也要遵循这个规则吗？
Q5: Does this apply to the Sun, Moon, and planets?
不需要。日月行星采用短曝光视频（Raw）叠加，热噪累积方式不同，帧数可适当提高至 6000–8000 帧。
No. For the Sun, Moon, and planets, we use short-exposure video stacking（Raw）. Since thermal noise behaves differently, you can increase frames to 6000–8000 frames.
Q6：低光害长时间拍摄需要注意什么？
Q6: What should I watch out for during long exposures under dark skies?
- 建议外接电源，避免中途断电（5V）。
- 注意防结露，可开启除雾功能或遮光罩。
- Use an external power bank to avoid shutdowns（5V）.
Prevent dew formation by enabling the built-in Anti-Dew function or using a lens hood.

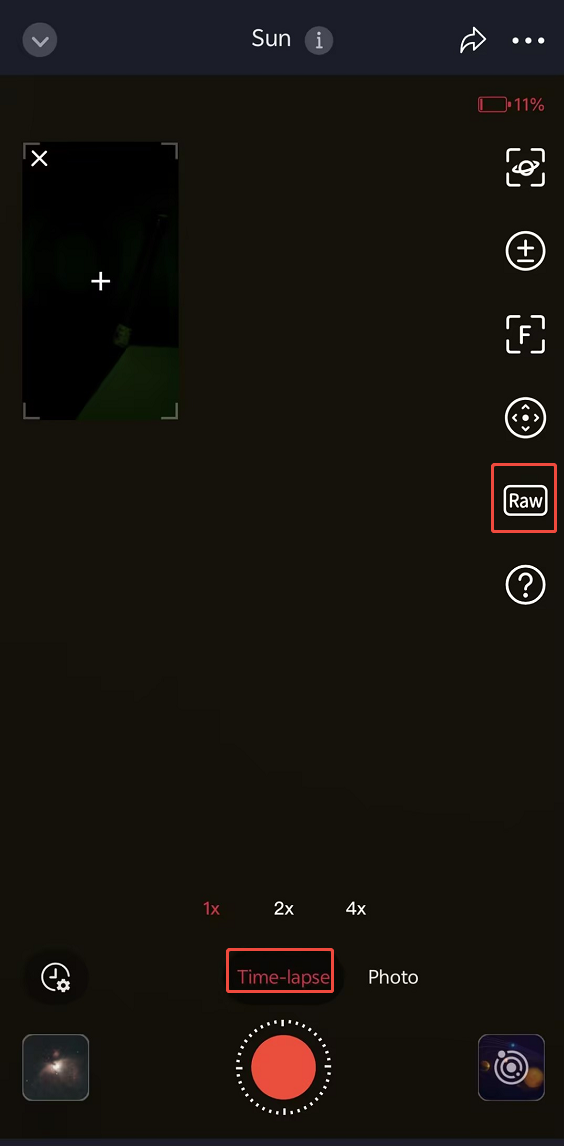

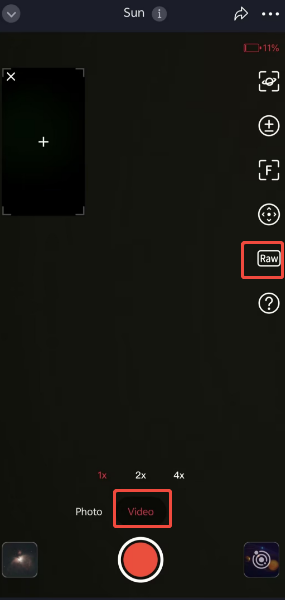

Q7：太阳系模式如何选择Raw格式？
Q7: How do I capture footage in RAW format under Solar System Mode?
Enter Solar System Mode and select your intended celestial target. Navigate to either Time-lapse or Video mode at the bottom menu bar, then tap the RAW toggle button on the right-hand panel. You may then start recording RAW video.
Seestar观星模式目前支持的最长曝光时间是多少秒？
60S，一般默认
故障排查类 | Troubleshooting
Q1: Seestar WIFI 连接不上 / 手机搜不到 WIFI 信号怎么办？
很抱歉给您带来不便，请您确认一下：
1. 手机 WIFI 列表是否出现 Seestar 的 WIFI 信号；如果不出现，请长按 WIFI Reset 键 30 秒，重复三次，看信号是否会出现
2. 如仍不出现，请通过数据线连接至电脑，看是否会弹出磁盘
3. 请告诉我们设备底部的 WIFI 名字
4. 请在问题发生时不要关闭设备，并在问题发生时提交日志：进入 Me 页面 → 点击 Service and Support → 点击 Report Bug and Log，并记得勾选 Add Log；提交完后告诉我们 BT ID Number
若勾选 Add Log 导致无法提交日志，可不勾选直接提交日志。
Q1: What should I do if Seestar Wi-Fi won't connect or the signal cannot be found?
We apologize for the inconvenience. Please check the following:
1. Does the Seestar's Wi-Fi signal appear in your phone's Wi-Fi list? If not, please press and hold the Wi-Fi Reset button for 30 seconds and repeat three times to see if it appears.
2. If it still does not appear, please connect the device to a computer with a USB cable and check whether a drive shows up.
3. Please tell us the Wi-Fi name on the bottom of the device.
4. Please do not power off the device when the issue occurs, and submit a log while it is happening: go to the Me page → tap Service and Support → tap Report Bug and Log, and remember to check Add Log. After submitting, please tell us the BT ID Number.
If checking Add Log prevents the log from being submitted, you can submit the log directly without it.
Q2: EQ 模式下无法保存/堆栈，AltAz 模式正常怎么办？
如果 AltAz（地平式）模式拍摄正常，但切换到 EQ（赤道仪）模式后所有图像都失败、无法堆栈，请按以下步骤排查：
1. 确认罗盘和调平均已正确校准（可用物理水平仪辅助验证）
2. 尝试重新执行极轴校准（Polar Align），完成后收臂（Close Arm），再直接 GOTO 目标进入 EQ 模式
3. 如果 EQ 模式能正常工作一小段时间（如 1-2 分钟）后才开始失败，通常是跟踪误差累积导致的软件问题
4. 请在问题发生时不要关闭设备，提交日志（Me → Service and Support → Report Bug and Log，勾选 Add Log），并告知 BT ID Number 供研发分析
Q2: Nothing saves or stacks in EQ mode, but AltAz works fine — what to do?
If AltAz mode works fine but all images fail and cannot stack in EQ mode, please troubleshoot as follows:
1. Verify that both the compass and leveling are properly calibrated (a physical level can be used for verification).
2. Try redoing Polar Align, then Close Arm and go directly to GOTO for EQ mode.
3. If EQ mode works briefly (e.g., 1-2 minutes) before failing, it is usually a software issue caused by accumulated tracking error.
4. Please do not power off the device when the issue occurs, submit a log (Me → Service and Support → Report Bug and Log, check Add Log), and provide the BT ID Number for R&D analysis.
Seestar通用 | Seestar General
应用商店（目前支持 iOS-APP Store, 安卓-Google Play/华为应用商店/小米应用商店）
打开应用商店，点击搜索框，输入Seestar，点击搜索。在搜索结果中找到Seestar 应用，点击安装即可。当然您也可以通过 Seestar 官网进行下载：
官网下载
https://www.seestar.com/cn/download
https://www.zwoastro.com/software/
###
相册/图像/视频

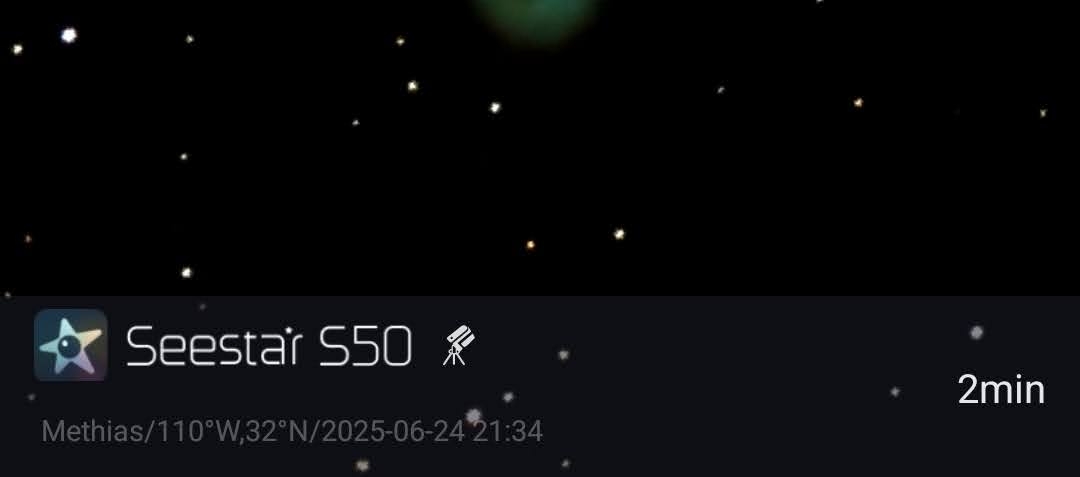

Q1: 为什么拍摄目标为 Unknown 时，开启水印只显示坐标和位置信息，不显示目标名称和头像？ | Q1: Why does the watermark only show coordinates and location when the target is Unknown?
A：因为该目标在数据库中未匹配到，APP 无法获取目标名称和头像，所以只显示坐标和位置信息。
A: Because the target was not matched in the database, the APP cannot retrieve the target name and avatar, so only the coordinates and location info are shown.
Q2: 实时叠加时点击停止增强，会同时保存 JPG 到手机相册吗？ | Q2: Does tapping Stop Enhancement during live stacking also save a JPG to the phone album?
A：会的，前提是手机连接着一体机。如果手机未连接设备（如设备计划拍摄时间到了被迫停止增强），则不会保存到本地相册。
A: Yes, provided the phone is connected to the device. If the phone is not connected (e.g., the scheduled shooting time has ended or stacking was forced to stop), the JPG will not be saved to the local album.
图像/视频保存和导出
Q1: 不同拍摄模式保存的图像/视频是什么格式？ | Q1: What formats are images/videos saved in for different shooting modes?
A：根据拍摄模式不同，保存的格式也有所不同，详见下表。
A: Different shooting modes save files in different formats. See the table below for details.
| 拍摄模式 | 拍摄场景 | 格式 | 存储位置 | 补充说明 |
|---|---|---|---|---|
|
观星模式 （Stargazing） |
实时叠加（Live Stacking） 叠加上的单帧（手动开启） |
Fits | Seestar 存储 | 如需 fits 格式需接电脑从 Seestar 存储中手动导出， 通过 APP -相册点击下载，会转换成 JPG 格式，下载到手机相册里。 |
| 连续拍摄（Continuous Capture）所有单帧 | JPG | 手机相册 | 如果在结束增强时，用户手机未连接到 Seestar WiFi，则不会保存此图片本地相册 | |
| Fits | Seestar 存储 | 如需 fits 格式需接电脑从 Seestar 存储中手动导出， 通过 APP -相册点击下载，会转换成 JPG 格式，下载到手机相册里。 | ||
|
太阳系模式 （Solar System） |
图片 | JPG | ||
| 延时摄影（非 RAW） | MP4 | Seestar 存储 | 可直接通过 APP -Seestar相册点击下载到手机相册里，也可接电脑从 Seestar 存储中手动导出。 | |
| 延时摄影（RAW） | AVI | Seestar 存储 | 如需 AVI 格式需接电脑从 Seestar 存储中手动导出， 通过 APP -相册点击下载，会转换成 MP4 格式，下载到手机相册里。 | |
| 视频（非 RAW） | MP4 | Seestar 存储 | 可直接通过 APP -Seestar相册点击下载到手机相册里，也可接电脑从 Seestar 存储中手动导出。 | |
| 视频（RAW） | AVI | Seestar 存储 | 如需 AVI 格式需接电脑从 Seestar 存储中手动导出， 通过 APP -相册点击下载，会转换成 MP4 格式，下载到手机相册里。 | |
|
观景模式 （Scenery） |
图片 | JPG | 手机相册 | |
| 延时摄影 | MP4 | Seestar 存储 | 可直接通过 APP -Seestar相册点击下载到手机相册里，也可接电脑从 Seestar 存储中手动导出。 | |
| 视频 | MP4 | Seestar 存储 | 可直接通过 APP -Seestar相册点击下载到手机相册里，也可接电脑从 Seestar 存储中手动导出。 | |
| 星野模式 （Milky way） |
延时摄影 | |||
| 图片 | fits | |||
| 视频 | MP4 |
暗场拍摄
默认情况下，Seestar 观星模式保存的所有 fits 均已做好暗场校准，无需另外再做扣除暗场。点击增强按钮时提示的图像增强准备中就是在拍摄暗场。
V3.3.0 起，观星模式支持暗场校准开关（S30 Pro）。V3.3.1 起，S30、S50 也支持暗场校准开关（默认关闭）。如关闭，暗场校准将不再自动进行。
By default, all FITS files saved in Seestar's Stargazing mode have already been calibrated with dark frames, so no additional dark frame subtraction is needed. The "Preparing Image Enhancement" prompt that appears when tapping the Enhance button indicates that a dark frame is being captured.
Starting from V3.3.0, Stargazing mode supports a Dark Frame Calibration switch (S30 Pro only). Starting from V3.3.1, S30 and S50 also support this switch (disabled by default). If disabled, dark frame calibration will no longer be performed automatically.
视频/图片下载

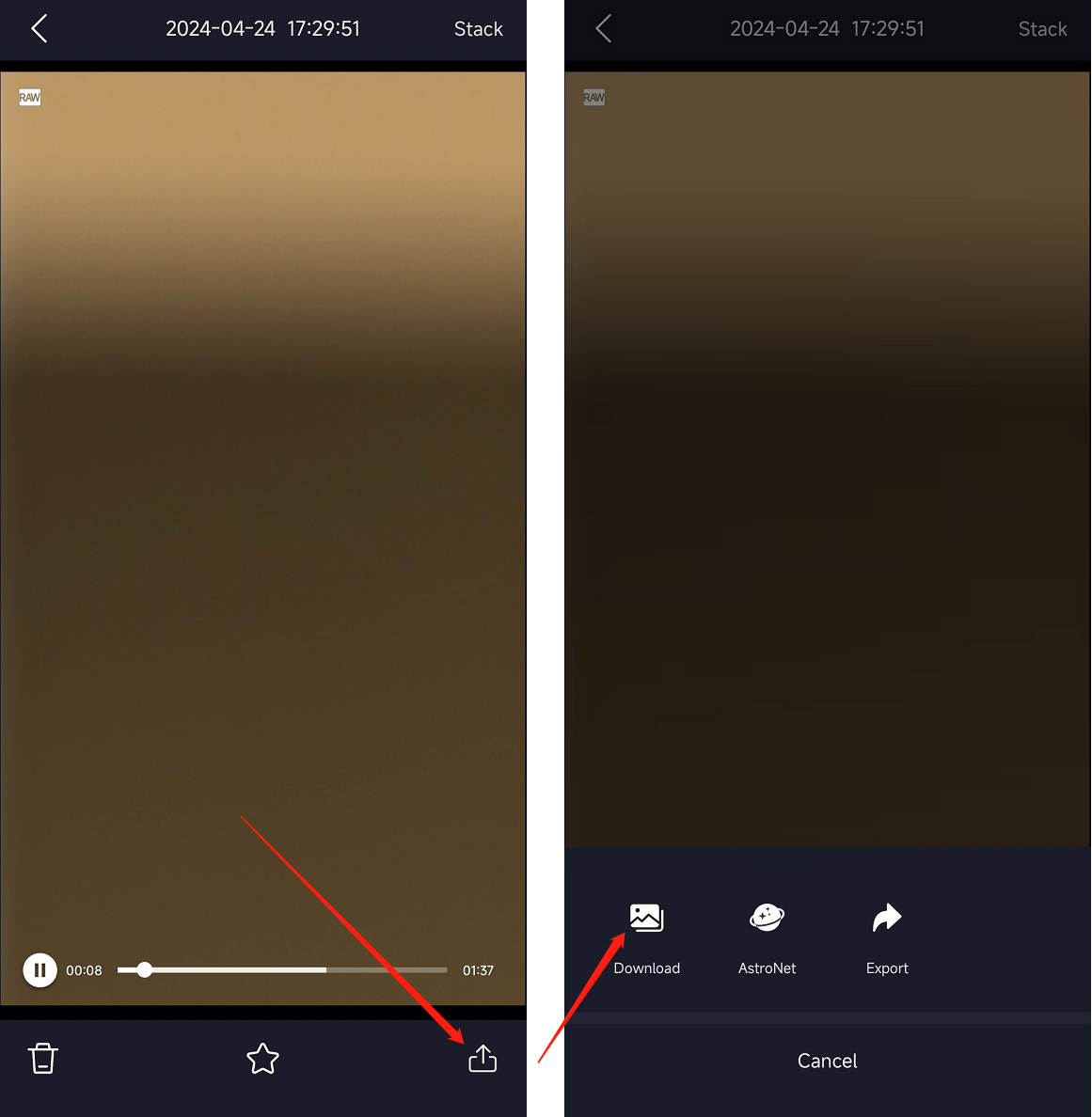

Q1: APP 中如何下载视频和图片到手机相册？ | Q1: How to download videos and images to the phone album via the APP?
A：进入要下载的图片或视频页面，点击右下角分享图标，选择下载即可。下载完成后可直接在手机相册中查看。
A: Open the image or video you want to download, tap the share icon at the bottom right, and select Download. Once downloaded, the file can be viewed directly in the phone album.
文件导出/存储

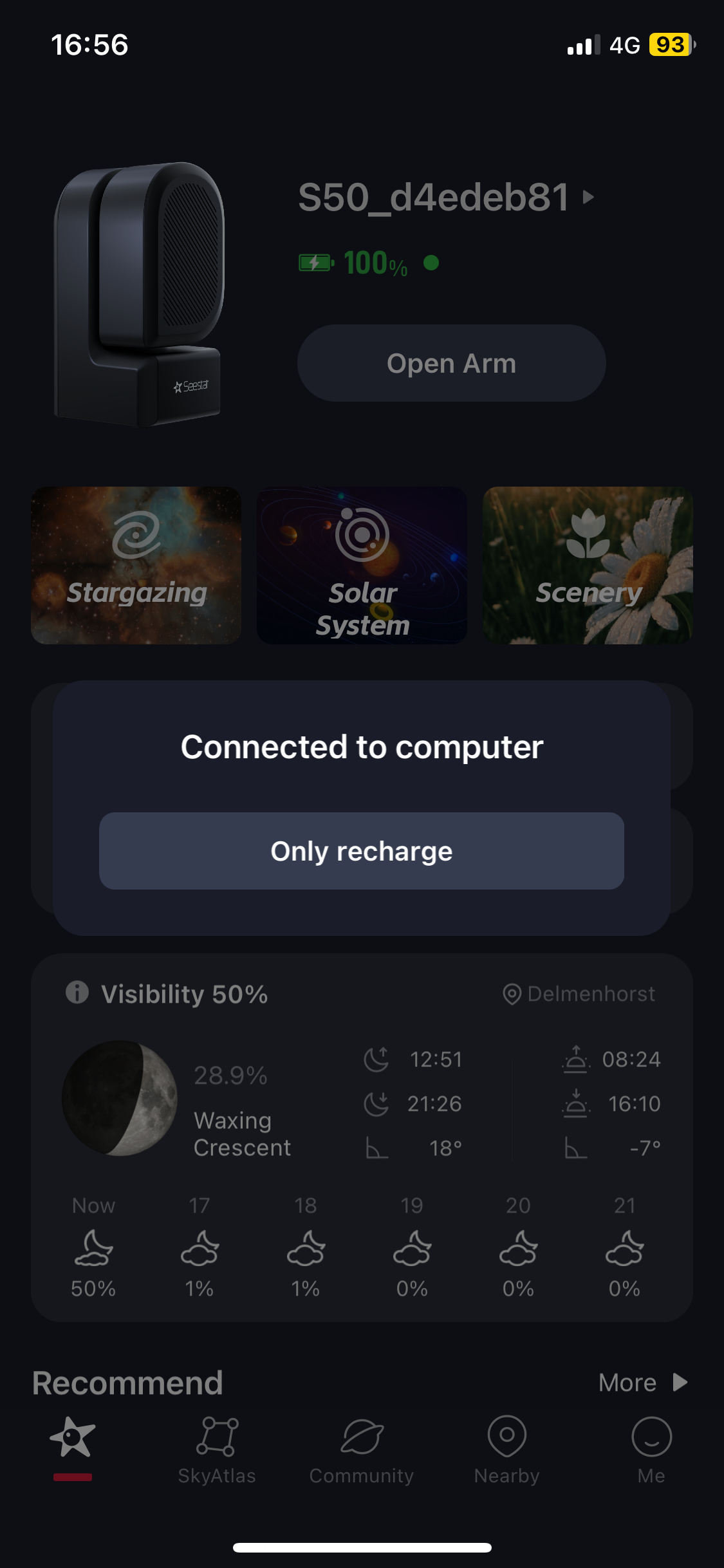

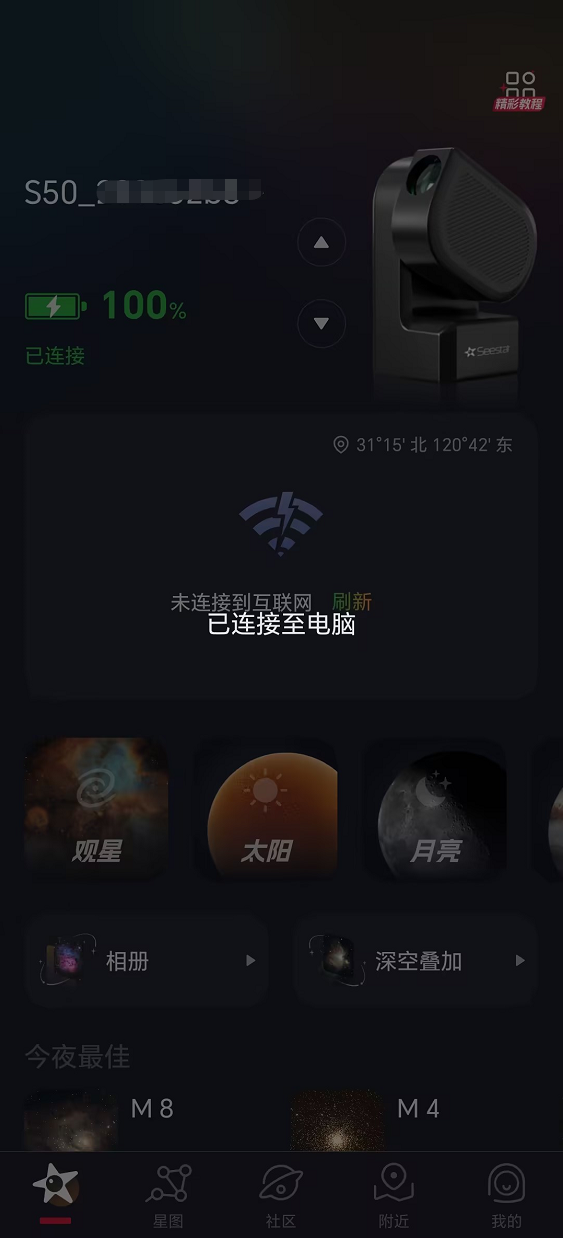

目前有两种方式可以将 Seestar 存储中的文件导出至电脑
There are two ways to export files from Seestar storage to your computer:
1 开机后，直接通过 type-c 口将 Seestar 连接至电脑，拷出文件即可
1. After powering on, connect Seestar directly to your computer via the USB-C port and copy out the files.
2 Seestar WiFi 设置中桥接至家里的网络，通过 IP 地址访问 Seestar 存储，拷出所需文件。如果提示需要输入用户名及密码，建议用户关闭防火墙试试。
2. Bridge to your home network in Seestar's WiFi settings, then access Seestar storage via the IP address to copy out the desired files. If prompted for a username and password, try disabling the firewall.
V3.3.1 起，图片编辑及视频叠加后支持再次编辑后再导出。V3.3.0 起，导出文件支持智能美化（原智能降噪）效果。
Starting from V3.3.1, edited images and post-stacking videos can be edited again before exporting. Starting from V3.3.0, exported files support Smart Enhancement (formerly Smart Denoise).
V3.3 版本更新说明 | V3.3 Release Notes
Q1: 智能美化（原智能降噪）在哪里使用？ | Q1: Where can I use Smart Enhancement (formerly Smart Denoise)?
A：V3.3.0 起，原"智能降噪"升级为"智能美化"，支持在叠加时和后期处理中使用，图像效果更佳。
A: Starting from V3.3.0, "Smart Denoise" has been upgraded to "Smart Enhancement", available in both live stacking and post-processing.
Q2: 镜片除雾功能在哪里？ | Q2: Where is the anti-dew (lens defog) feature?
A：V3.3.1 已将镜片除雾功能移回「设备管理」页面。
A: V3.3.1 moved the anti-dew feature back to the Device Management page.
Q3: 退出账号功能在哪？ | Q3: Where is the Sign Out function?
A：V3.3.1 起，退出账号功能移至「账号与安全」。
A: Starting from V3.3.1, Sign Out has been moved to Account & Security.
Q4: 远程模式时主控账号能做什么？ | Q4: What can the primary account do in Remote Mode?
A：V3.3.1 起，远程模式主控账号支持传感器校准、支架模式切换及关机操作。
A: Starting from V3.3.1, the primary account in Remote Mode supports sensor calibration, mount mode switching, and shutdown.
Q5: 指南针校准有变化吗？校准失败怎么办？ | Q5: Any changes to compass calibration? What if it fails?
A：V3.3.1 起，指南针校准精度优化；V3.3.2 已修复校准失败问题，建议升级到最新版本（固件 9.31）。
A: V3.3.1 improved compass calibration accuracy; V3.3.2 fixed the calibration failure issue. We recommend upgrading to the latest version (firmware 9.31).
Q6: S30/S50 的暗场校准开关在哪？ | Q6: Where is the Dark Frame Calibration switch for S30/S50?
A：V3.3.1 起，S30、S50 新增暗场校准开关，默认关闭。
A: Starting from V3.3.1, S30 and S50 have a new Dark Frame Calibration switch, disabled by default.
Q7: 连接 Seestar 时如何使用局域网搜索？ | Q7: How to use Local Network discovery when connecting Seestar?
A：V3.3.0 起，连接 Seestar 支持【局域网】搜索，可自动发现同网络下的设备。
A: Starting from V3.3.0, Seestar connection supports Local Network discovery to find devices on the same network.
Q8: 观星模式的智能AF是什么？ | Q8: What is Smart AF in Stargazing mode?
A：V3.3.0 起，观星模式支持智能AF，可根据传感器温度变化自动触发对焦。
A: Starting from V3.3.0, Smart AF is supported in Stargazing mode, automatically triggered by sensor temperature changes.
Q9: 星野拍照模式如何拼接 180° 全景？ | Q9: How to stitch a 180° panorama in Milky Way mode?
A：V3.3.0 起，星野拍照模式支持 180° 横屏拼接，可拍摄广角全景图。
A: Starting from V3.3.0, Milky Way mode supports 180° panorama capture for wide-angle images.
Q10: 星轨模式支持哪些保存方式？ | Q10: What saving options does Star Trails mode support?
A：V3.3.0 起，星轨模式支持保存单帧和视频生成。
A: Starting from V3.3.0, Star Trails mode supports saving single frames and generating videos.
Q11: 计划拍摄如何一键自动生成计划？ | Q11: How to auto-generate a plan with one tap in Plan mode?
A：V3.3.0 起，计划拍摄新增一键自动生成计划任务的功能。
A: Starting from V3.3.0, Plan mode supports One-Tap Auto Plan Generation.
Q12: 星野模式如何识别流星？（Pro 系列）| Q12: How to detect meteors in Milky Way mode? (Pro series)
A：V3.3.1 起，星野模式新增流星识别功能，自动标记含动态目标的单帧（仅 Pro 系列支持）。
A: Starting from V3.3.1, Milky Way mode supports meteor detection, automatically marking frames with dynamic targets (Pro series only).
Q13: 计划拍摄如何用广角目标和双摄同拍？（Pro 系列）| Q13: How to use wide-angle targets and dual-camera capture in Plan mode? (Pro series)
A：V3.3.1 起，计划拍摄支持广角目标及双摄同拍（仅 Pro 系列支持）。
A: Starting from V3.3.1, Plan mode supports wide-angle targets and dual-camera capture (Pro series only).
Q14: 计划拍摄如何分享和导入？ | Q14: How to share and import plans in Plan mode?
A：V3.3.1 起，计划拍摄新增分享和导入功能。
A: Starting from V3.3.1, Plan mode supports plan sharing and import.
Q15: 星野拼接图片如何使用智能美化？ | Q15: How to use Smart Enhancement on Milky Way panorama images?
A：V3.3.1 起，星野拼接图片支持智能美化（原智能降噪），可在拼接后应用。
A: Starting from V3.3.1, Milky Way panorama images support Smart Enhancement (formerly Smart Denoise), available after stitching.
Q16: 长焦传感器温度在哪里查看？ | Q16: Where to view the telephoto sensor temperature?
A：V3.3.1 起，设备信息中新增了长焦传感器温度显示，请在设备信息页面查看。
A: Starting from V3.3.1, the device info page now displays the telephoto sensor temperature.
Q17: 未连接设备时如何开关水印？ | Q17: How to toggle watermark when no device is connected?
A：V3.3.1 起，未连接设备时支持开关水印，请在 APP 设置中调整。
A: Starting from V3.3.1, the watermark can be toggled when no device is connected, available in APP settings.
Q18: 远程模式如何自定义设备名称和上传日志？ | Q18: How to customize device name and upload logs in Remote Mode?
A：V3.3.1 起，远程模式支持自定义设备名称及日志上传。
A: Starting from V3.3.1, Remote Mode supports custom device names and log uploads.
Q19: Seestar 社区有什么变化？ | Q19: What are the changes in the Seestar Community?
A：V3.3.1 起，Seestar 社区全面升级，体验更流畅、内容更丰富。
A: Starting from V3.3.1, the Seestar Community has been fully upgraded for a smoother and richer experience.
连接电脑
当用户将 Seestar 通过 USB 线接到电脑时，打开 APP 连接上该设备后会出现这个提示，这个状态下 APP 内无法做任何操作，移除 USB 线之后即可恢复。
Seestar 使用USB连接电脑时提示格式化的处理方法
这通常是由于系统文件损坏或电脑权限设置异常引起。您可以先尝试更换 USB 数据线重新连接设备，如果仍无法访问，可以通过 WiFi 导出 Seestar 上的图像文件进行备份（参考教程：https://h5.seestar.com/course/79216）。之后可进行格式化操作，但在电脑上格式化时请务必选择 exFAT 格式。格式化完成后，再使用 USB 数据线连接设备即可验证是否恢复正常。
How to Solve the Format Request When Using Seestar with a PC
It is usually caused by corrupted system files or abnormal computer permission settings. You can first try replacing the USB cable and reconnecting the device. If it still cannot be accessed, you can back up the image files on Seestar via WiFi (refer to the tutorial: https://h5.seestar.com/course/79218). After that, you may proceed with the formatting operation, but be sure to select the exFAT format when formatting on the computer. Once formatting is completed, reconnect the device with the USB data cable to verify whether it has returned to normal.
观星模式
观星模式常见问题 | Stargazing FAQ
Q1: 计划模式下拍摄完一个目标后，APP 会自动关闭观星吗？ | Q1: In Plan Mode, does the APP automatically exit Stargazing after completing a target?
A：在计划模式中，当第一个目标拍摄完成后，APP 会自动关闭观星过程并返回主页，到下一个目标开始时再进入观星模式。
A: In Plan Mode, once the first target is completed, the APP will automatically close the stargazing process and return to the home page. When the next target starts, it will re-enter stargazing mode.
Q2: 经纬仪模式和赤道仪模式下抖动范围是多少？ | Q2: What is the jitter range in AltAz and EQ modes?
A：经纬仪模式下和赤道仪模式下抖动范围都是 100 像素。
A: The jitter range in both AltAz and EQ modes is 100 pixels.
Q3: Seestar S50/S30 的观星 4K 功能是如何实现的？ | Q3: How is the Stargazing 4K feature implemented on Seestar S50/S30?
A：观星 4K 使用 Drizzle 算法：每个低分辨率图像中的像素会被拆分为更小的子像素，根据位移权重"滴落"到高分辨率网格的对应位置。
A: Stargazing 4K uses the Drizzle algorithm: each pixel in the low-resolution image is split into smaller sub-pixels and "dripped" onto the corresponding position in the high-resolution grid based on shift weights.
Q4: 计划拍摄模式下能加入行星或彗星作为拍摄目标吗？ | Q4: Can planets or comets be added as shooting targets in Plan Mode?
A：不建议。随着时间推移，行星或彗星的位置会发生变化，但计划拍摄使用的是固定的 RA/DEC 坐标，会错过目标。
A: Not recommended. Planets and comets change position over time, but Plan Mode uses fixed RA/DEC coordinates and would miss the target.
1. 在计划模式中，如果用户当第一个目标拍摄完成后，App 自动关闭观星过程并返回主页，再到下一个目标开始时进入观星模式。
2. 经纬仪模式下和赤道仪模式下抖动的范围都是100像素；
3. Seestar S50和S30观星4K功能的解释（Drizzle算法）：每个低分辨率图像中的像素会被拆分为更小的子像素，如何根据位移权重“滴落”到高分辨率网格的对应位置；
4. 计划拍摄模式下不建议加入行星或者彗星作为拍摄目标，随着时间推移，这两类目标的位置会和之前不一样，但是计划拍摄中使用的是固定的Radec，会错过；
APP基础
Seestar app基础 | Seestar APP Basics
Q1: 登录 Seestar 账号后，收藏夹和计划拍摄列表存在哪里？ | Q1: Where are favorites and plan lists stored after signing in to a Seestar account?
A：登录账号后，收藏夹和计划拍摄列表会保存在服务端，可以同步；如果没有登录账号，数据只存在本地，APP 卸载后数据将丢失且无法恢复。
A: After signing in, favorites and plan lists are stored on the server and synced. Without signing in, data is only stored locally and will be lost if the APP is uninstalled, with no way to recover.
Q2: Seestar 内置指南针显示的是磁北还是真北？ | Q2: Does the Seestar built-in compass show magnetic north or true north?
A：Seestar 内置指南针按真北计算（不是磁北）。它已考虑了磁偏角，直接指向地图上的"北"，对天文观测更准确。
A: The Seestar built-in compass is calculated based on true north (not magnetic north). It has factored in magnetic declination and points directly to the map's "north", which is more accurate for astronomical observation.
Q3: 马赛克模式未拼接完成能降噪吗？ | Q3: Can denoising be performed on incomplete Mosaic mode stitching?
A：不能。马赛克模式没有拼接完成无法进行降噪，需要保存到相册后再裁切，因为拼不全不能做降噪。
A: No. Mosaic mode cannot be denoised without completing the stitch first. Save to album and crop as needed, since incomplete stitching cannot be denoised.
1. 在登录Seestar账号的时候，收藏夹或者计划拍摄列表都会存在服务端，可以同步；如果没有登录账号就只会在手机本地，APP卸载了数据就没了，无法恢复；
2. Seestar内置的指南针显示的方向不是按磁北来计算的，而是按真北来计算的。
具体解释：
磁北：地球磁场的北极位置，指南针指向的方向就是磁北。但磁北位置会随地点不同而略有偏差（磁偏角）。
真北：地理北极的位置，是地图上标注的北方。
所以 Seestar 内置指南针显示的方向已经考虑了磁偏角，直接指向地图上的“北”，而不是指南针指针指向的磁北。这对天文观测更准确，因为天文定位和星图都是按真北坐标来的。
1. 马赛克模式没有拼接完成无法进行降噪，需要保存到相册进行裁切，这是因为拼不全不能做降噪。
二、Seestar S30 FAQ
功能参数类 | Functional Parameter Class
Q1: Seestar S30的外观尺寸是多少？ | Q1: What are the dimensions of the Seestar S30?
A: 机身尺寸为210×140×80（mm），EVA硬壳收纳包尺寸为300×185×100（mm）。
A: The body dimensions are 210×140×80 (mm), and the dimensions of the EVA hard shell storage bag are 300×185×100 (mm).
Q2: Seestar S30的机身重量是多少？ | Q2: What is the body weight of Seestar S30?
A: Seestar S30的机身重量为1.65kg，机身、脚架、EVA硬壳箱总重2.12kg。
A: The body weight of Seestar S30 is 1.65kg, and the total weight of the body, tripod, and EVA hard case is 2.12kg.
Q3: Seestar S30的相机传感器是什么型号？ | Q3: What is the model of the camera sensor on the Seestar S30?
A: Seestar S30的光感传感器选用了星光级索尼IMX662，拥有1/2.8”画幅，1080×1920分辨率。传感器对角线长度为6.46mm，具有高灵敏度低噪声的特点，暗夜表现更出色。
A: The sensor of Seestar S30 is Starlight-grade Sony IMX662, with a 1/2.8 inch format and a resolution of 1080\*1920. The diagonal length is 6.46mm. The S30 boasts high sensitivity and low noise for better night performance.
Q4: Seestar S30的镜头光圈和焦距分别是多少？ | Q4: What are the lens aperture and focal length of Seestar S30 respectively?
A: Seestar S30采用低色散的ED玻璃材质，采用3片式复消色差APO设计，长焦口径为30mm，焦比为F5，焦距为150mm，具备出色的成像能力，可与同口径的专业折射望远镜媲美。
A: Seestar S30 is a triplet complex achromatic APO (including one piece of low dispersion ED glass) with excellent chromatic aberration control. The aperture of the tele lens is 30mm, focal ratio F5. Focal length 150mm. The imaging performance is as good as a professional refractor of the same aperture.
Q5: Seestar S30的视场是多大？ | Q5: What is the field of view of Seestar S30?
A: Seestar S30的广角视场范围是23.2°，长焦视场范围是2.46°。
A: The wide-angle field of view of Seestar S30 is 23.2°, and the telephoto field of view is 2.46°.
Q6: Seestar S30的存储空间是多大？ | Q6: What is the storage capacity of Seestar S30?
A: Seestar S30内置64GB的eMMC存储空间，出厂时可用空间为约50GB。
A: The Seestar S30 comes with 64GB of built-in eMMC storage, with approximately 50GB of available space out of the box.
操作指导类 | Operation Guidance Category
Q1: Seestar S30能拍摄什么？ | Q1: What can the Seestar S30 shoot?
A: Seestar S30提供三种观测模式：
A: Seestar S30 offers three observation modes:
- 观星模式：可以拍摄深空天体目标
- Stargazing Mode: Can capture deep sky object targets
- 观景模式：可以拍摄风景或者动物
- Scenery Mode: Can photograph landscapes or animals
- 太阳系模式：可以拍摄太阳、月亮等，会自动开启跟踪
- Solar System Mode: Can photograph the Sun, Moon, etc., and will automatically activate tracking
Q2: Seestar S30能拍多近的物体？ | Q2: How close can the Seestar S30 shoot objects?
A: S30对焦距离为6m\~无穷远。
A: S30 focusing distance is 6m\~infinity.
Q3: Seestar S30拍摄可以使用哪些滤镜？ | Q3: Which filters can be used for shooting with Seestar S30?
A: Seestar S30内置了三种滤镜：UV/IR Cut滤镜、暗场滤镜和双窄带光害滤镜（带宽OIII 30nm/Hα 20nm）。Seestar S30还附赠了一块磁吸式的太阳滤镜，可以用于拍摄日面。
A: The Seestar S30 comes with three built-in filters: UV/IR Cut filter, Dark Field filter, and Dual Narrowband Light Pollution filter (bandwidth OIII 30nm/Hα 20nm). The Seestar S30 also comes with a magnetic solar filter, which can be used for solar disk photography.

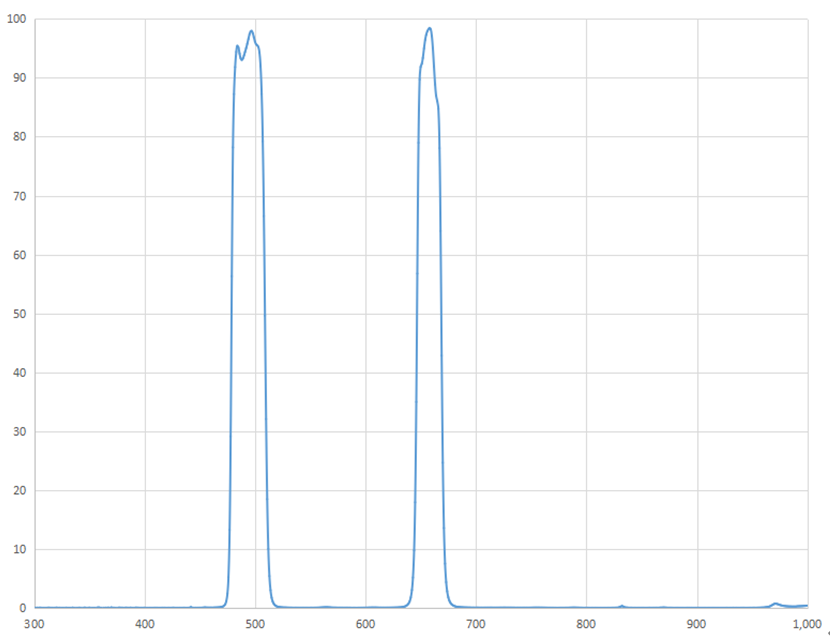

光害滤镜（LP filter）

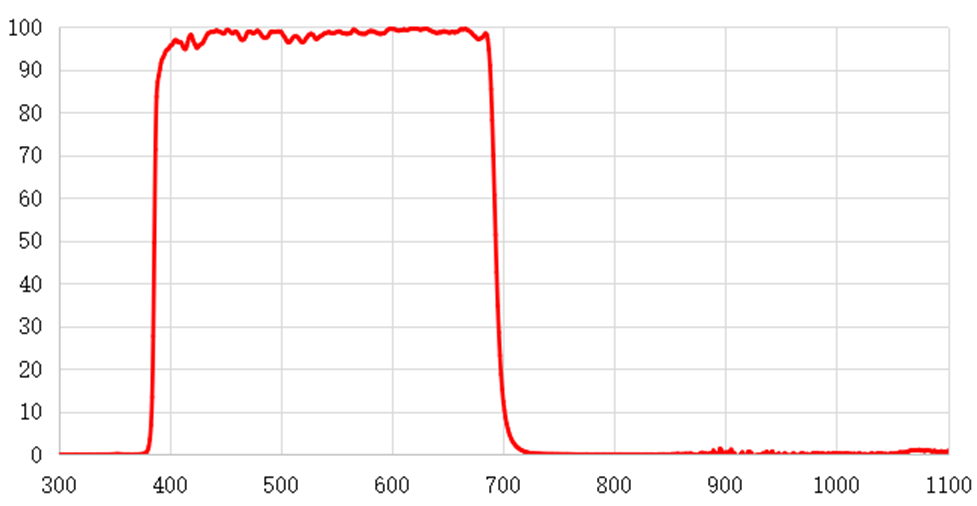

红外截止滤镜（UV/IR Cut filter）
Q4: Seestar S30支持赤道仪模式吗？ | Q4: Does Seestar S30 support equatorial mount mode?
A: 是的。通过连接支架并通过应用程序切换模式，Seestar可以实现精确的天体跟踪，延长曝光时间，并消除场旋，以获得更高质量的观测和成像效果。
A: Yes. By connecting the bracket and switching modes through the app, Seestar can achieve precise celestial body tracking, extend exposure time, and eliminate field rotation to obtain higher-quality observation and imaging results.
故障排查类 | Troubleshooting
Q1: Seestar S30连接或识别异常怎么办？ | Q1: What should I do if the Seestar S30 has connection or recognition issues?
A: Seestar S30连接或识别异常的可能原因及解决方案如下：
A: Possible causes and solutions for abnormal connection or recognition of Seestar S30 are as follows:
1. 网络问题：检查手机网络信号强度，使用桥接模式连接家庭WiFi连接互联网
2. Network issue: Checkthe strength of the mobile network signal,connect to the home WiFi using Station mode to access the Internet
3. APP问题：切换成2.4GWiFi/5GWiFi频段
4. APP Issue: Switch to 2.4G WiFi/5G WiFi frequency band
5. 设备问题：长按底部Seestar S30的WiFi按键，然后重新连接
6. Device Issue: Long press the WiFi button on the bottom of Seestar S30 , then reconnect
7. 系统问题：更新Seestar APP到最新版本
8. System issue: Update the Seestar APP to the latest version
Q2: Seestar S30叠加率低或叠加失败怎么办？ | Q2: What should I do if the Seestar S30 has a low stacking rate or stacking failure?
A: Seestar S30叠加率低或叠加失败的解决方案如下：
A: The solutions for low stacking rate or stacking failure of Seestar S30 are as follows:
1. 请将Seestar S30放置在平稳坚固的表面，避免木地板、沙地或风大的环境
2. Please place the Seestar S30 on a flat and sturdy surface, avoiding wooden floors, sandy areas, or windy environments
3. 避免周围人员或车辆造成震动，以免星点变形或拖尾，导致叠加失败
4. Avoid vibrations caused by surrounding personnel or vehicles to prevent stars from deforming or trailing, which may lead to stacking failure
5. 避免在光污染严重或多云的环境下拍摄，过亮的天空背景会降低星点识别率，从而影响叠加效率
6. Avoid shooting in environments with severe light pollution or cloudy conditions, as an overly bright sky background will reduce the stars recognition rate, thereby affecting the stacking efficiency
7. 如果下次拍摄出现这个问题，不要关闭Seestar S30，请使用邮箱登录上Seestar APP后按照教程提交日志
8. If this issue occurs during the next shooting, do not turn off Seestar S30. Instead, log in to the Seestar APP using your email and submit the log according to the tutorial.
Q3: Seestar S30在低温环境下充不进电怎么办？ | Q3: What should I do if the Seestar S30 cannot be charged in a low-temperature environment?
A: Seestar S30在低温环境下充不进电的解决方案如下：
A: The solution to the problem that Seestar S30 cannot charge in low-temperature environments is as follows:
- 低温下充不进电，但能供电工作是正常现象
- It is normal that the battery cannot be charged at low temperatures but can still supply power for operation
- 请在温度高于0℃的环境下进行充电
- Please charge in an environment with a temperature above 0°C
Q4: Seestar S30拍摄图像出现红色光晕怎么办？ | Q4: What should I do if a red halo appears in the images taken by Seestar S30?
A: Seestar S30拍摄图像出现红色光晕的解决方案如下：
A: The solution to the red halo issue in Seestar S30 captured images is as follows:
1. 尝试重新拍摄平场图像，看看是否能解决图像右侧的红色色调问题
2. Try retaking the flat field image to see if it can resolve the red tint issue on the right side of the image
3. 平场校准可以有效校正光照不均、传感器灰尘以及其他类似的图像异常
4. Flat-field calibration can effectively correct uneven illumination, sensor dust, and other similar image anomalies
三、Seestar S30 Pro FAQ
功能参数类 | Functional Parameter Class
Q1: Seestar S30 Pro的外观尺寸是多少？ | Q1: What are the dimensions of the Seestar S30 Pro?
A: Seestar S30 Pro的机身尺寸为210×140×80（mm），与S30相同。
A: The body dimensions of Seestar S30 Pro are 210×140×80 (mm), the same as those of S30.
Q2: Seestar S30 Pro的机身重量是多少？ | Q2: What is the body weight of the Seestar S30 Pro?
A: Seestar S30 Pro的整机重量为1.65kg，便于外出携带。
A: The Seestar S30 Pro has a total weight of 1.65kg, making it easy to carry when going out.
Q3: Seestar S30 Pro的主摄和广角分别使用什么传感器？ | Q3: What sensors are used for the main camera and wide-angle camera of Seestar S30 Pro respectively?
A: Seestar S30 Pro采用了双摄像系统设计：
A: Seestar S30 Pro features a dual-camera system design:
- 长焦相机选用了星空摄影常用的索尼IMX585传感器，拥有1/1.2”大尺寸画幅
- The telephoto camera uses the Sony IMX585 sensor commonly used in astrophotography, with a large 1/1.2" format
- 广角相机则采用索尼IMX586传感器，提供更大的视场范围
- The wide-angle camera uses the Sony IMX586 sensor, providing a larger field of view
Q4: Seestar S30 Pro的镜头结构如何？ | Q4: What is the lens structure of the Seestar S30 Pro?
A: Seestar S30 Pro采用四片式复消色差光学设计，其中包含一片ED低色散玻璃，有效抑制色差，提升整体成像锐度与对比度。
A: The Seestar S30 Pro features a four-element apochromatic optical design, which includes an ED low-dispersion glass, effectively suppressing chromatic aberration and enhancing overall imaging sharpness and contrast.
Q5: Seestar S30 Pro的视场是多大？ | Q5: What is the field of view of the Seestar S30 Pro?
A: Seestar S30 Pro的广角视场范围是63°，长焦视场范围是4.6°。
A: The wide-angle field of view of the Seestar S30 Pro is 63°, and the telephoto field of view is 4.6°.
Q6: Seestar S30 Pro的存储空间是多大？ | Q6: What is the storage capacity of the Seestar S30 Pro?
A: Seestar S30 Pro内置128GB存储空间，其中约100GB可供用户实际使用。
A: The Seestar S30 Pro comes with 128GB of built-in storage, of which approximately 100GB is actually available for user use.
Q7: Seestar S30 Pro的电池容量和续航表现如何？ | Q7: What are the battery capacity and battery life performance of the Seestar S30 Pro?
A: Seestar S30 Pro内置一组6000mAh高容量电池，在正常观测与拍摄条件下，整机续航时间可达约6小时。
A: The Seestar S30 Pro is equipped with a set of 6000mAh high-capacity batteries, and under normal observation and shooting conditions, the overall battery life of the device can reach approximately 6 hours.
Q8: Seestar S30 Pro广角相机是否支持自动对焦？ | Q8: Does the Seestar S30 Pro wide-angle camera support autofocus?
A: Seestar S30 Pro的广角相机支持多区域自动对焦，用户可自由选择对焦区域，而非固定焦点设计，在不同拍摄场景下都能获得更清晰的成像效果。
A: The wide-angle camera of Seestar S30 Pro supports multi-zone autofocus, allowing users to freely select the focus area instead of using a fixed focus design, thus achieving clearer imaging results in different shooting scenarios.
Q9: 银河模式和星轨模式是否适用于其他Seestar型号？ | Q9: Are the Galaxy Mode and Star Orbit Mode applicable to other Seestar models?
A: 目前，这些银河与星轨相关功能仅限于S30 Pro。
A: Currently, these functions related to galaxies and star trails are limited to the S30 Pro.
操作指导类 | Operation Guidance
Q1: Seestar S30 Pro能拍摄什么？ | Q1: What can the Seestar S30 Pro shoot?
A: Seestar S30 Pro提供四种观测模式：
A: Seestar S30 Pro offers four observation modes:
- 观星模式：可以拍摄深空天体目标
- Stargazing Mode: Can capture deep sky object targets
- 星野模式：可以拍摄银河、星轨、星座识别标注等
- Hoshino Mode: Can capture the Milky Way, star trails, constellation recognition and annotation, etc.
- 太阳系模式：可以拍摄太阳、月亮等，会自动开启跟踪
- Solar System Mode: Can capture the sun, moon, etc., and will automatically activate tracking
- 观景模式：可以拍摄风景或者动物
- Scenery Mode: Can shoot landscapes or animals
Q2: Seestar S30 Pro如何进行NFC快速连接？ | Q2: How to perform NFC quick connection on Seestar S30 Pro?
A: 首次激活完成后，后续使用时，在开机后可通过NFC功能实现快速连接：
A: After the first activation is completed, during subsequent use, quick connection can be achieved via the NFC function after powering on:
1. 检查您的手机是否支持NFC功能，并开启NFC功能
2. Check if your phone supports NFC functionality and turn on the NFC feature
3. 找到手机的NFC感应区域，一般会在手机的背面中央或顶部
4. Locate the NFC sensing area of the phone, which is typically in the center or at the top of the phone's back
5. S30 Pro开机，听到"已开机，等待连接"的语音播报后，将已解锁的手机NFC感应区域触碰S30 Pro的NFC感应位置
6. Turn on the S30 Pro, and after hearing the voice prompt "Powered on, waiting for connection", touch the NFC sensing area of the unlocked phone to the NFC sensing position of the S30 Pro
7. 触碰NFC后，会自动打开Seestar App并完成设备连接，点击"确认连接"即可完成连接
8. After touching NFC, the Seestar App will automatically open and complete the device connection. Click "Confirm Connection" to complete the connection.
Q3: Seestar S30 Pro的首次激活需要注意什么？ | Q3: What should I pay attention to when activating the Seestar S30 Pro for the first time?
A: Seestar S30 Pro首次激活需要注意以下几点：
A: When activating the Seestar S30 Pro for the first time, please note the following points:
1. ZWO Seestar系列产品区分中国大陆版和海外版，中国大陆版仅限中国地区（含港澳台）内激活，在非中国地区无法激活使用，且不享受保修服务
2. ZWO Seestar series products are divided into the Chinese mainland version and the overseas version. The Chinese mainland version can only be activated within China (including Hong Kong, Macao, and Taiwan), cannot be activated or used in non-Chinese regions, and does not enjoy warranty services
3. 激活过程中，请勿将Seestar App置于后台或关闭
4. During the activation process, do not place the Seestar App in the background or close it
5. 如果激活失败，请检查网络后多重试几次，若仍失败请联系客服
6. If activation fails, please check your network and try again multiple times. If it still fails, please contact customer service
Q4: Seestar S30 Pro如何进行电池拆卸？ | Q4: How to disassemble the battery of Seestar S30 Pro?
A: 如果需要拆卸电池，请按以下步骤操作：
A: If you need to remove the battery, please follow these steps:
1. 在机身上找到电池仓位置，使用适当工具（如扁状螺丝刀）轻轻撬开电池仓盖板
2. Locate the battery compartment on the device body, and use an appropriate tool (such as a flathead screwdriver) to gently pry open the battery compartment cover
3. 接着小心拔下电池的接插端子，最后取出电池
4. Then carefully unplug the battery's plug-in terminal, and finally remove the battery
5. 请确保在整个过程中轻柔操作，避免对设备造成损害
6. Please ensure gentle handling throughout the process to avoid damaging the equipment
故障排查类 | Troubleshooting
Q1: Seestar S30 Pro在拍摄过程中出现图像质量下降怎么办？ | Q1: What should I do if the image quality of Seestar S30 Pro deteriorates during shooting?
A: Seestar S30 Pro在拍摄过程中出现图像质量下降的解决方案如下：
A: The solutions to the image quality degradation issue that occurs during the shooting process of Seestar S30 Pro are as follows:
1. 检查周围环境，确认是否存在外部光源干扰，例如附近移动或扫射的灯光（例如，安保灯、车灯或其他人工照明）
2. Check the surrounding environment to confirm whether there is interference from external light sources, such as nearby moving or sweeping lights (e.g., security lights, vehicle lights, or other artificial lighting)
3. 如果确认附近没有光线干扰，请在下次拍摄时执行以下操作：
4. If you confirm that there is no light interference nearby, please perform the following operations during the next shooting:
- 点击"连续拍摄"以保存所有单帧图像
- Click "Continue Capture" to save all single-frame images
- 将所有已保存的单帧图像分享给技术支持
- Share all saved single-frame images with technical support
Q2: Seestar S30 Pro手机连上以后总是断开，反复需要重新连接设备怎么办？ | Q2: What should I do if the Seestar S30 Pro phone keeps disconnecting after being connected and repeatedly requires reconnecting the device?
A: Seestar S30 Pro手机连接断开的解决方案如下：
A: The solutions to the disconnection issue of the Seestar S30 Pro mobile phone are as follows:
1. 机器的底部有个按键，可以长按，将wifi重置一下
2. There is a button at the bottom of the machine that can be long-pressed to reset the Wi-Fi
3. 然后连接时，直接去手机的wifi连接中连接seestar的wifi
4. Then, when connecting, directly go to the Wi-Fi settings on your phone and connect to Seestar's Wi-Fi
Q3: Seestar S30 Pro在拍摄行星时没有拍出来纹理怎么办？ | Q3: What should I do if the Seestar S30 Pro fails to capture the texture when shooting planets?
A: Seestar S30 Pro拍摄行星没有纹理的解决方案如下：
A: The solution to the problem of Seestar S30 Pro not capturing planetary textures is as follows:
- 请确认是否从app首页上的观星模式进入的
- Please confirm whether you entered from the stargazing mode on the app's home page
- 拍行星要从太阳系模式进入
- To photograph planets, you need to enter from the solar system mode
Q4: Seestar S30 Pro在使用过程中出现叠加失败，显示"星点拖线，图像已丢弃"怎么办？ | Q4: What should I do if the Seestar S30 Pro fails to stack during use and displays "Star trails detected, image discarded"?
A: Seestar S30 Pro叠加失败的解决方案如下：
A: The solutions to the Seestar S30 Pro overlay failure are as follows:
1. 追踪不稳定
2. Tracking instability
3. 检查水平数值和环境
4. Check the level value and environment
5. 重新goto目标
6. Re-goto target
四、Seestar S50 FAQ
功能参数类 | Functional Parameter Class
Q1: Seestar S50的外观尺寸是多少？ | Q1: What are the dimensions of Seestar S50?
A: 机身尺寸为142.5×130×257（mm），EPP防震箱尺寸为320×160×310（mm），彩色纸盒包装尺寸为332×168×334（mm）。
A: The body dimensions are 142.5×130×257 (mm), the EPP shockproof box dimensions are 320×160×310 (mm), and the color carton packaging dimensions are 332×168×334 (mm).
Q2: Seestar S50的机身重量是多少？ | Q2: What is the body weight of Seestar S50?
A: Seestar S50的机身重量为2.5kg。脚架重量0.65kg。包装泡沫箱0.6kg。
A: The body weight of Seestar S50 is 2.5kg. The tripod weighs 0.65kg. The packaging foam box weighs 0.6kg.
Q3: Seestar S50的相机传感器是什么型号？ | Q3: What is the model of the camera sensor in Seestar S50?
A: Seestar S50的光感传感器选用了高灵敏度的IMX462，拥有1/2.8"画幅，1080×1920分辨率。传感器对角线长度为6.46mm。
A: The light sensor of Seestar S50 uses the highly sensitive IMX462, with a 1/2.8" format and a resolution of 1080×1920. The diagonal length of the sensor is 6.46mm.
Q4: Seestar S50的镜头光圈和焦距分别是多少？ | Q4: What are the lens aperture and focal length of Seestar S50 respectively?
A: Seestar S50采用低色散的ED玻璃材质，采用3片式APO设计，焦比为F5，焦距为250mm，具备出色的成像能力，可与同口径的专业折射望远镜媲美。
A: The Seestar S50 uses low-dispersion ED glass material, adopts a 3-element APO design, has a focal ratio of F5 and a focal length of 250mm, and possesses excellent imaging capabilities, comparable to professional refracting telescopes of the same aperture.
Q5: Seestar S50的视场是多大？ | Q5: What is the field of view of Seestar S50?
A: Seestar S50的视场范围是0.73°×1.29°。
A: The field of view of Seestar S50 is 0.73°×1.29°.
Q6: Seestar S50的存储空间是多大？ | Q6: What is the storage capacity of Seestar S50?
A: Seestar S50内置64GB的eMMC存储空间，出厂时可用空间为约50GB。用户可以通过USB数据线或Wi-Fi网络传输Seestar S50内存储的图片。为了确保数据的稳定性，Seestar S50不支持TF（microSD）卡。
A: The Seestar S50 comes with 64GB of built-in eMMC storage, with approximately 50GB of available space at the time of factory shipment. Users can transfer the pictures stored in the Seestar S50 via USB data cable or Wi-Fi network. To ensure data stability, the Seestar S50 does not support TF (microSD) cards.
Q7: Seestar S50的工作环境温度是什么范围？ | Q7: What is the operating environment temperature range of Seestar S50?
A: 推荐使用环境温度：-10℃-40℃。当检测到电池温度超过60℃时会自动关机。
A: Recommended operating temperature: -10°C to 40°C. When the battery temperature is detected to exceed 60°C, it will automatically shut down.
Q8: Seestar S50 内置了哪些滤镜？（中英已加）
Q8：What filters are built into Seestar S50?
增加三种滤镜的功能
Seestar S50 内置了三种滤镜：UV/IR Cut 滤镜、暗场滤镜和双窄带光害滤镜（带宽 OIII 30nm/Hα 20nm）。暗场滤镜会自适应来切换。用户可以在 Seestar app 内切换 UV/IR Cut 和双窄带光害滤镜。
Seestar S50 is equipped with three built-in filters: UV/IR Cut filter, dark filter, and dual-band anti-light pollution filter (OIII 30nm/Hα 20nm). The switching of the dark filter is automatically controlled by Seestar. As for the UV/IR Cut filter and light pollution filter, users can switch between them in the app based on their own needs.
UV/IR Cut 滤镜：将紫外线和红外线采用一刀切的方式过滤掉，只让可见光波段通过。光谱曲线图如下：
UV/IR Cut filter: Filters out ultraviolet and infrared rays and only allows visible light to pass through. The spectral curve is as follows:
暗场滤镜：供拍摄校准场使用，为拍摄星点时降低噪声（自动使用，App 内无法控制）；
Dark Filter: Can be used to capture dark frames to reduce noise on your astrophoto. (It will be automatically used, can not be controlled in the APP)
双窄带光害滤镜（带宽 OIII 30nm/Hα 20nm）：有效降低城市光污染及月光所带来的影响，特别适合发射星云的拍摄，光谱曲线图如下：
Dual band anti-light pollution filter (OIII 30nm/Hα 20nm): Effectively reduce the impact of light pollution and moonlight, especially suitable for emission nebula imaging. The spectral curve is as follows:
Q9：在户外使用时，Seestar S50 的防风等级是多少？
What is the wind protection level of Seestar S50 for outdoor use?
Seestar S50为轻量级的天文望远镜，风会影响它的跟踪精度。我们建议在低于四级以下使用。
Seestar S50 is a lightweight astronomical telescope so wind can affect its tracking accuracy. We recommend using it when the wind scale is 4 and above.
操作指导类 | Operation Guidance
Q1: Seestar S50能拍摄什么？ | Q1: What can the Seestar S50 shoot?
A: Seestar S50能拍摄以下内容：
A: Seestar S50 can shoot the following content:
- 观星模式：可以拍摄深空天体目标
- Stargazing Mode: Can capture deep sky object targets
- 观景模式：相当于1750mm的超长焦光学定焦镜头，可以拍摄风景或者动物
- Scenery Mode: Equivalent to a super-telephoto optical prime lens with a focal length of 1750mm, capable of shooting landscapes or animals
- 太阳系模式：可以拍摄太阳和月亮以及太阳系行星，会自动开启太阳和月亮跟踪
- Solar System Mode: Can capture the Sun and Moon , as well as planets in the solar system, and will automatically activate Sun and Moon tracking
Q2: Seestar S50进行观星时，可以导星么？ | Q2: Can the Seestar S50 guide stars during stargazing?
A: 不支持导星。因为观星模式下Seestar S50的单张照片的曝光时间只有10s，不存在长曝光时的导星问题，所以不需要导星。同时Seestar S50具备自动居中功能，可以确保目标始终处于画面中间。
A: Guiding is not supported. Since the exposure time of a single photo of Seestar S50 in stargazing mode is only 10 seconds, there is no guiding issue during long exposures, so guiding is not required. Meanwhile, Seestar S50 has an automatic centering function, which can ensure that the target always stays in the middle of the frame.
Q3: Seestar S50可以看太阳吗？ | Q3: Can the Seestar S50 be used to observe the sun?
A: 请注意，严禁将Seestar S50直接指向太阳。在太阳观测之前，请按App内提示先正确安装太阳膜滤镜。Seestar S50 app内提供太阳观测模式，供用户快速进入观测和拍摄状态。
A: Please note that it is strictly prohibited to point the Seestar S50 directly at the sun. Before solar observation, please follow the in-app instructions to correctly install the solar film filter first. The Seestar S50 app provides a solar observation mode for users to quickly enter the observation and shooting state.
Q4: Seestar S50能拍摄ISS、CSS等人造天体么？ | Q4: Can Seestar S50 photograph artificial celestial bodies such as ISS and CSS?
A: Seestar S50 不支持近地卫星的跟踪拍摄，用户可以通过空间站凌日月的方式尝试拍摄。
A: The Seestar S50 does not support tracking and shooting of near-Earth satellites. Users can try shooting by means of the space station transiting the Sun or Moon.
Seestar S50 does not support the tracking of near-Earth satellites. Users can try to shoot the space station by transiting the sun or the moon.
Q5: Seestar S50的曝光时长是多少？ | Q5: What is the exposure duration of Seestar S50?
A: Seestar S50的曝光时长如下：
A: The exposure duration of Seestar S50 is as follows:
- 当选择观星模式的时候，预览界面的画面是0.5s曝光，开始拍摄时会使用10s曝光。因为机器性能限制以及经纬仪的场旋问题，目前曝光时长默认设置在10s。
- When the stargazing mode is selected, the preview screen has an exposure time of 0.5 seconds, and 10 seconds of exposure will be used when starting to shoot. Due to computer performance limitations and the field rotation issue of the theodolite, the current exposure durationis set by defaultto 10 seconds.
- 当选择观景模式的时候，曝光时间和增益是根据图像亮度自动选择的，最长曝光33ms。
- When the viewing mode is selected, the exposure time and gain are automatically selected based on the image brightness, with a maximum exposure time of 33ms.
故障排查类 | Troubleshooting
Q1: Seestar S50无法开机怎么办？ | Q1: What should I do if the Seestar S50 fails to power on?
A: Seestar S50无法开机的解决方案如下：
A: The solutions for the Seestar S50's failure to power on are as follows:
- 检查Seestar S50电量，给Seestar S50充电后再尝试开机
- Check the battery level of Seestar S50, charge it, and then try to turn it on again
- 长按电源键30s尝试开机
- Press and hold the power button for 30 seconds to attempt to turn on the device
- 插拔电池线
- Plug and unplug the battery cable
- 若仍然无法开机，请登录官网留言或联系技术支持
- If the device still fails to power on, please log in to the official website to leave a message or contact technical support
Q2: Seestar S50无法连接上电脑拷贝文件怎么办？ | Q2: What should I do if the Seestar S50 cannot connect to the computer to copy files?
A: Seestar S50无法连接上电脑拷贝文件的解决方案如下：
A: The solutions for Seestar S50's failure to connect to a computer for file copying are as follows:
- 尝试更换数据线或换一个电脑的USB接口连接
- Try replacing the data cable or connecting to a different USB port on the computer
- 使用WiFi传输文件
- First transfer files using WiFi
- 若仍然无法解决，请登录官网留言或联系技术支持
- If the issue persists, please log in to the official website to leave a message or contact technical support
Q3: Seestar S50固件升级失败怎么办？ | Q3: What should I do if the firmware upgrade of Seestar S50 fails?
A: Seestar S50固件升级失败的解决方案如下：
A: The solutions to the failure of Seestar S50 firmware upgrade are as follows:
- 电量不足、机载空间不足、网络状况不稳定等都会导致固件升级失败
- Insufficient battery, insufficient onboard storage space, unstable network conditions, etc., can all lead to firmware upgrade failure
- 遇到固件升级失败，可以重启后再次尝试
- If firmware upgrade fails, you can restart and try again
Q4: Seestar S50使用过程中发热严重怎么办？ | Q4: What should I do if the Seestar S50 overheats during use?
A: Seestar S50使用过程中发热的解决方案如下：
A: The solutions to the heating issue during the use of Seestar S50 are as follows:
- Seestar S50在高负荷状态下运行时，发热属于正常现象。特别是支持快充时，由于电流电压较大，温度会比工作状态和普通充电时高一些。
- When the Seestar S50 operates under high load, heat generation is a normal phenomenon. Especially when fast charging is supported, due to the relatively large current and voltage, the temperature will be slightly higher than during normal operation and regular charging.
- 若Seestar S50在空闲状态下发热严重，可联系技术支持查明原因
- If the Seestar S50 generates excessive heat in idle state, you can contact technical support to identify the cause
Q5: Seestar S50如何判断是否处于厂测模式？ | Q5: How does Seestar S50 determine whether it is in the factory test mode?
A: 如果机器处于厂测模式，会持续发出中文语音播报"WiFi等待连接"，电源指示灯会持续闪烁。
A: If the machine is in the factory test mode, it will continuously emit a voice broadcast saying "WIFI is connecting", and the power indicator light will continuously flash.
Q6: Seestar S50在电量低于26%时自动关机怎么办？ | Q6: What should I do if the Seestar S50 automatically shuts down when the battery level is below 26%?
A: 请尝试以下步骤，以帮助确定问题原因：
A: Please try the following steps to help identify the cause of the problem:
1. 按住电源按钮约30秒，彻底关闭设备，然后重新启动设备
2. Press and hold the power button for approximately 30 seconds to completely turn off the device, then restart the device
3. 检查电池电量是否一致：重启后，检查Seestar S50上显示的电池电量是否与Seestar App中显示的电池百分比一致。如果一致，请继续使用设备，并观察是否仍然会在电量降至26%左右时自动关机
4. Check if the battery level is consistent: After restarting, check if the battery level displayed on the Seestar S50 is consistent with the battery percentage shown in the Seestar App. If they are consistent, continue using the device and observe whether it still automatically shuts down when the battery level drops to around 26%.
5. 如果问题仍然存在，请按照官方教程步骤拔下并重新连接内置电池线，然后再次启动设备，测试问题是否已解决
6. If the problem persists, please follow the official tutorial steps to unplug and reconnect the built-in battery cable, then start the device again to test whether the problem has been resolved
7. 如果问题仍然存在，请在设备关机后重新启动设备，使用邮箱账号登录Seestar App，并按照教程上传日志，完成后将日志ID分享给技术支持以便进一步分析根本原因
8. If the problem persists, please restart the device after turning it off, log in to the Seestar App using your email account, and upload the log according to the tutorial. After completion, share the log ID with technical support for further analysis of the root cause.
Q7: Seestar S50无法充电怎么办？ | Q7: What should I do if the Seestar S50 cannot be charged?
A: 请尝试以下步骤来帮助解决问题：
A: Please try the following steps to help resolve the issue:
1. 按住电源键约30秒以完全关闭设备，然后重新启动并检查是否可以开始充电
2. Press and hold the power button for about 30 seconds to completely turn off the device, then restart it and check if charging can start
3. 更换电源适配器和充电线：如果仍然无法充电，请尝试使用不同的电源适配器和充电线（确保适配器符合推荐的功率要求），然后再次测试
4. Replace the power adapter and charging cable: If charging still fails, try using a different power adapter and charging cable (ensure the adapter meets the recommended power requirements), then test again
5. 重新连接电池线：如果问题仍然存在，请按照官方教程步骤断开并重新连接内置电池线，然后启动设备并检查充电状态
6. Reconnect the battery cable: If the problem persists, please follow the official tutorial steps to disconnect and reconnect the built-in battery cable, then start the device and check the charging status
7. 检查充电端口：如果以上步骤均无效，建议仔细检查充电端口，查看是否有碎屑、灰尘或可见的损坏，这些都可能导致接触不良
8. Check the charging port: If the above steps are ineffective, it is recommended to carefully inspect the charging port for debris, dust, or visible damage, which may cause poor contact
9. 如果完成以上步骤后问题仍然无法解决，请联系技术支持
10. If the problem persists after completing the above steps, please contact technical support
Q8: Seestar S50无法找到太阳或月亮怎么办？ | Q8: What should I do if the Seestar S50 cannot find the sun or moon?
A: Seestar S50不支持恢复出厂设置功能，因此无法将其恢复到出厂状态。关于无法找到太阳或月亮的问题，最常见的原因是望远镜的指向与天体的实际位置存在偏差，请根据偏差范围尝试以下故障排除步骤：
A: The Seestar S50 does not support the factory reset function, so it cannot be restored to its factory state. Regarding the issue of being unable to find the sun or moon, the most common cause is that the telescope's pointing deviates from the actual position of the celestial body. Please try the following troubleshooting steps based on the deviation range:
- 如果偏差大于50°：请重新校准指南针。请确保在空旷区域进行校准，远离磁场干扰源，例如金属物体、电子设备、电力线或汽车——这些都会影响指南针的精度
- If the deviation is greater than 50°: Please recalibrate the Compass. Ensure that calibration is performed in an open area, away from sources of magnetic field interference, such as metal objects, electronic devices, power lines, or cars - all of which can affect the accuracy of the Compass
- 如果偏差小于50°：请在Seestar App中检查水平仪数值（通过相同的"水平仪和指南针校准"菜单）。调整三脚架，直到水平仪数值接近0（低于2的值可用，但越接近0越好），然后再次尝试定位太阳或月亮
- If the deviation is less than 50°: Please check the level value in the Seestar App (via the same "Level and Compass Calibration" menu). Adjust the tripod until the level value is close to 0 (values below 2 are acceptable, but the closer to 0, the better), then try to locate the sun or moon again
- 此外，还可以参考以下分步教程，了解手动定位太阳的方法：https://h5.seestar.com/course/79043
- Additionally, you can refer to the following step-by-step tutorial to learn how to manually locate the sun:
https://h5.seestar.com/course/326739
- ⚠️ 重要安全提示：在观察或尝试定位太阳之前，请确保已在Seestar S50上安装太阳滤镜。直接观察太阳而不使用合适的滤镜可能会严重损坏设备的传感器
- ⚠️ Important Safety Notice: Before observing or attempting to locate the sun, please ensure that the solar filter has been installed on the Seestar S50. Directly observing the sun without using a suitable filter may severely damage the device's sensor.
五、Seestar S50 Pro FAQ
功能参数类 | Functional Parameters
Q1: Seestar S50 Pro的外观尺寸是多少？ | Q1: What are the dimensions of the Seestar S50 Pro?
A: Seestar S50 Pro的尺寸为 140×145×260mm。
A: The dimensions of Seestar S50 Pro are 140×145×260mm .
Q2: Seestar S50 Pro的机身重量是多少？ | Q2: What is the body weight of Seestar S50 Pro?
A: Seestar S50 Pro的重量为 2.8kg。
A: The body weight of Seestar S50 Pro is 2.8kg .
Q3: Seestar S50 Pro的主摄和广角分别使用什么传感器？ | Q3: What sensors are used for the main camera and wide-angle camera of Seestar S50 Pro respectively?
A: 主摄长焦采用 1/1.2英寸 CMOS，分辨率 2160×3840（830万像素），像元大小 2.9μm；广角采用 1/2英寸 CMOS，分辨率 2160×3840（830万像素），像元大小 1.6μm。
A: The main telephoto camera uses a 1/1.2" CMOS sensor with 2160×3840 resolution (8.3MP), pixel size 2.9μm; the wide-angle camera uses a 1/2" CMOS sensor with 2160×3840 resolution (8.3MP), pixel size 1.6μm.
Q4: Seestar S50 Pro的等效焦距是多少？ | Q4: What is the equivalent focal length of Seestar S50 Pro?
A: Seestar S50 Pro 等效焦距为 880mm。
A: The equivalent focal length of Seestar S50 Pro is 880mm.
Q5: Seestar S50 Pro的视场角是多大？ | Q5: What is the field of view of Seestar S50 Pro?
A: 长焦镜头视场角 D2.8°，广角镜头视场角 D63°。
A: The telephoto lens FOV is D2.8°, and the wide-angle lens FOV is D63°.
Q6: Seestar S50 Pro的存储空间是多大？ | Q6: What is the storage capacity of Seestar S50 Pro?
A: 内置存储容量为 128GB，实际可用约 100GB。工作温度：-10°C\~40°C；充电环境温度：0°C\~40°C；存储温度：-10°C\~60°C。工作湿度：20%\~80%；存储湿度：20%\~50%。建议存放在干净干燥的地方，雷雨天气或长时间不使用时请关闭设备。
A: The internal storage capacity is 128GB, with approximately 100GB available for use. Operating temperature: -10°C to 40°C; Charging temperature: 0°C to 40°C; Storage temperature: -10°C to 60°C. Operating humidity: 20%–80%; Storage humidity: 20%–50%. Store in a clean, dry place. Turn off the device during thunderstorms or prolonged non-use.
Q7: Seestar S50 Pro的脚架与S50的脚架有什么区别？ | Q7: What is the difference between the Seestar S50 Pro tripod and the S50 tripod?
A: S50 Pro 采用最新两档两调节脚架，与老款脚架相比增加了一档支撑腿的张开方式，可张开角度更大、稳定性更好。
A: S50 Pro uses the latest two-gear two-adjustment tripod, which adds one more support leg opening angle compared to the older tripod, allowing for a larger opening angle and better stability.
Q8: Seestar S50 Pro的三脚架接口规格是什么？ | Q8: What is the tripod interface specification of Seestar S50 Pro?
A: 采用与 S50 相同的 ⅜"×16 规格。
A: It uses the same ⅜"×16 specification as the S50.
Q9: Seestar S50 Pro的电池支持用户自行更换吗？ | Q9: Can the Seestar S50 Pro battery be replaced by the user?
A: 按照以往 Seestar 其他产品操作方式，官方前台不提供售卖电池和更换服务。
A: Following the practice of other Seestar products, the official front desk does not provide battery sales or replacement services.
Q10: Seestar S50 Pro的充电规格是什么？ | Q10: What are the charging specifications of Seestar S50 Pro?
A: Type-C 接口，支持 DC 5V/3A、12V/3A 输入。
A: Type-C port, supports DC 5V/3A and 12V/3A input.
Q11: Seestar S50 Pro是否配备防结露/除雾功能？ | Q11: Does the Seestar S50 Pro have anti-dew/defogging function?
A: 配备除雾功能，整体处理能力强于老品。
A: Equipped with defogging function, with overall processing capability stronger than older models.
Q12: Seestar S50 Pro的应用程序版本是什么？ | Q12: What is the Seestar S50 Pro application version?
A: 对应 Seestar App 3.3.1 版本，最新版本会随新品上市同步上线。App 和固件需同步升级，老版本 App 与新版本固件不兼容。
A: The corresponding version is Seestar App 3.3.1, which will be released simultaneously with the new product. App and firmware must be upgraded together, old App version is incompatible with new firmware.
Q13: Seestar S50 Pro对比S50新增了哪些功能？ | Q13: What new features does Seestar S50 Pro have compared to S50?
A: S50 Pro 较 S50 新增的功能明细：
1. 全新外观
2. 双摄4K画质，超清成像 — 双摄均为 2160×3840 分辨率
3. 适中视角，一览全貌 — D2.8° 视场角（长焦），D63° 视场角（广角）
4. 星野拍摄 — 广角支持拍摄银河/星轨
5. 光学设计更专业 — 升级为 4片式复消色差镜头
6. 高效配对，一步连接 — 支持 NFC 连接
7. 大容量随心拍 — 存储容量升级为 128GB
8. 一键生成计划拍摄功能
A: New features of S50 Pro compared to S50:
1. New appearance
2. Dual 4K cameras — both with 2160×3840 resolution
3. Moderate FOV — D2.8° (telephoto), D63° (wide-angle)
4. Star field shooting — wide-angle supports Milky Way/star trails
5. Professional optical design — upgraded to 4-element apochromatic lens
6. NFC quick connection
7. Large storage — upgraded to 128GB
8. One-tap plan shooting function
Q14: Seestar S50 Pro的光学口径和焦比是多少？ | Q14: What are the aperture and focal ratio of Seestar S50 Pro?
A: 长焦镜头口径50mm，焦比F/5.2，焦距260mm；广角镜头口径3.4mm，焦比F/1.75，焦距6mm。光学系统采用4片式复消色差APO设计，配备ED玻璃，色彩还原度高，成像锐利。
A: The telephoto lens has a 50mm aperture at F/5.2 with a 260mm focal length; the wide-angle lens has a 3.4mm aperture at F/1.75 with a 6mm focal length. The optical system uses a 4-element apochromatic (APO) design with ED glass, delivering high color fidelity and sharp imaging.
Q15: Seestar S50 Pro的Wi-Fi和蓝牙规格是什么？ | Q15: What are the Wi-Fi and Bluetooth specifications of Seestar S50 Pro?
A: Wi-Fi支持5G和2.4G双频段，有效传输距离≤10m（空旷无遮挡环境）；蓝牙有效传输距离≤5m。实际传输距离可能因环境干扰而有所差异。
A: Wi-Fi supports both 5G and 2.4G bands with an effective transmission distance of up to 10m (in open, unobstructed environments); Bluetooth range is up to 5m. Actual range may vary depending on environmental interference.
Q16: Seestar S50 Pro支持哪些图像和视频格式？ | Q16: What image and video formats does Seestar S50 Pro support?
A: 图像格式支持JPEG和FITS，视频格式支持MP4和AVI。FITS格式适合天文后期处理，JPEG/MP4适合日常分享。
A: Image formats: JPEG and FITS. Video formats: MP4 and AVI. FITS is ideal for astrophotography post-processing, while JPEG/MP4 is suitable for everyday sharing.
Q17: Seestar S50 Pro的工作距离是多少？ | Q17: What is the working distance of Seestar S50 Pro?
A: 长焦镜头工作距离为15m至无穷远，广角镜头工作距离为0.1m至无穷远。长焦适合天文和远景拍摄，广角可拍摄近景和广阔场景。
A: The telephoto lens has a working distance of 15m to infinity; the wide-angle lens from 0.1m to infinity. The telephoto is ideal for astronomy and distant subjects, while the wide-angle can capture close-ups and expansive scenes.
Q18: Seestar S50 Pro内置了哪些滤镜，各自有什么作用？ | Q18: What built-in filters does Seestar S50 Pro have and what are their functions?
A: S50 Pro内置三种滤镜：① UV/IR-Cut滤镜（紫外/红外截止滤镜）——日常拍摄默认使用，过滤紫外和红外光线保证成像色彩准确；② 双窄带光害滤镜（OIII 30nm / Hα 20nm）——在光害较重的环境下手动切换使用，可有效过滤光污染，提升深空天体成像质量；③ 暗场滤镜（Dark Filter）——用于拍摄暗场校准帧，消除热噪和暗电流。此外还配备磁吸式外置太阳滤镜用于太阳观测。
A: The S50 Pro has three built-in filters: ① UV/IR-Cut Filter — default for everyday shooting, blocking UV and IR light for accurate color; ② Dual-Band Anti-Light Pollution Filter (OIII 30nm / Hα 20nm) — manually enabled in light-polluted areas to improve deep-sky imaging; ③ Dark Filter — for capturing dark calibration frames to eliminate thermal noise and dark current. A magnetic external solar filter is also included for solar observation.
操作指导类 | Operation Guidance
Q1: Seestar S50 Pro能拍摄什么？ | Q1: What can the Seestar S50 Pro shoot?
A: S50 Pro支持四大观测模式：① 观星模式——观测并拍摄星云、星团、星系等深空天体，支持图像增强实时叠加；② 星野模式——拍摄银河、星轨、星座识别等广角星空场景；③ 太阳系模式——观测太阳（需安装太阳滤镜）、月亮及其他太阳系行星目标；④ 观景模式——白天观测和拍摄鸟类、动物或自然风景。此外支持双摄同时拍摄、一键银拱、星轨动态视频等功能。
- 双摄同时功能：通过主镜头与广角镜头协同工作，在深空拍摄时兼顾星野拍摄。
- 一键银拱：用户可手动居中至银河中心，设备会自动完成银河拱桥拍摄流程。
- 星轨动态视频：将长时间拍摄的星轨画面生成动态视频。
A: S50 Pro offers four modes: ① Star Gazing — deep-sky objects with live stacking; ② Starfield — Milky Way, star trails, constellation ID; ③ Solar System — sun (with solar filter), moon, planets; ④ Scenic — daytime birds, wildlife, landscapes. Also supports dual-camera simultaneous capture, one-tap Milky Way arch, and star trail dynamic video.
Q2: Seestar S50 Pro如何使用NFC快速连接？ | Q2: How to perform NFC quick connection on Seestar S50 Pro?
A: S50 Pro 支持 NFC 一触即连，将手机靠近设备 NFC 区域即可快速配对，无需繁琐的蓝牙搜索流程。
A: S50 Pro supports NFC one-tap connection — simply bring your phone close to the device's NFC area for quick pairing, without the need for tedious Bluetooth searching.
Q3: Seestar S50 Pro的自动定时拍摄可以在白天设置吗？ | Q3: Can the Seestar S50 Pro scheduled shooting be set during daytime?
A: 计划拍摄任务可以在白天设置。只要在拍摄前下发拍摄任务即可，拍摄前机器处于待机状态，有效较低功耗。
A: Scheduled shooting tasks can be set during daytime. Just send the shooting task before imaging; the device remains in standby mode to save power.
Q4: Seestar S50 Pro如何在观星模式下启用专业模式？ | Q4: How to enable Professional Mode in Star Gazing Mode on Seestar S50 Pro?
A: 启用"专业模式"后可调整曝光参数，后续会逐渐增多。该功能适用 Seestar 所有产品。
A: Enabling "Professional Mode" allows adjustment of exposure parameters, with more options coming. This feature applies to all Seestar products.
Q5: Seestar S50 Pro的4K模式如何打开？ | Q5: How to enable 4K mode on Seestar S50 Pro?
A: 不需要额外打开，默认拍摄都是 4K。在1X（无变焦）模式下，长焦和广角均以 2160×3840（约830万像素）分辨率拍摄，为竖画幅。在2X和4X数字变焦下分辨率会降低，建议追求最高画质时使用1X模式。
- 观星模式和星野模式支持拼接拍摄，输出图片像素可达 8K
- 太阳系模式和观景模式支持数码裁切，1×\~4× 无级缩放
A: No need to enable separately, default shooting is 4K. At 1X (no zoom), both lenses shoot at 2160×3840 (approximately 8.3MP) in vertical frame. Resolution decreases at 2X and 4X digital zoom — use 1X for best image quality.
- Star Gazing and Star Field modes support stitching, output can reach 8K
- Solar System and Scenic modes support digital cropping, 1×\~4× stepless zoom
Q6: Seestar S50 Pro的银河模式拼接功能？ | Q6: Milky Way mode stitching on Seestar S50 Pro?
A: 支持水平及垂直银河拼接，最大输出 8K 画质。可在星图中使用"构图"功能调整视野范围，实现更自由的拍摄构图。
A: Supports horizontal and vertical Milky Way stitching, maximum output 8K. Use the "Composition" function in Sky Atlas for more flexible framing.
Q7: Seestar S50 Pro的天网远程功能介绍？ | Q7: Introduction to Seestar S50 Pro's SkyNet remote function?
A: 将设备加入天网后即可实现跨地域远程操控。天网远程功能支持：
- 设备分享：将设备使用权限分享给他人
- 设备转让：将天网绑定账号转给其他用户
- 批量导出：支持批量导出照片，可选 JPG、FIT、JPG+FIT 格式
A: Add the device to SkyNet for cross-region remote control. SkyNet supports:
- Device sharing: Share device usage permissions with others
- Device transfer: Transfer the SkyNet-bound account to other users
- Batch export: Batch export photos in JPG, FIT, or JPG+FIT format
Q8: Seestar S50 Pro有横屏模式吗？ | Q8: Does Seestar S50 Pro have a landscape mode?
A: App iPad 操作界面可支持横屏，输出图像为竖版。
A: The App iPad interface supports landscape orientation, but the output image is portrait.
Q9: Seestar S50 Pro的自动水平校准？ | Q9: Seestar S50 Pro's automatic level calibration?
A: 没有必须进行水平校准，因为 S50 Pro 现在支持自动水平校准，当然也可以手动调。
A: Level calibration is not required, as S50 Pro now supports automatic level calibration, though manual adjustment is also available.
Q10: Seestar S50 Pro的新增后期美化处理功能？ | Q10: New post-processing beautification features on Seestar S50 Pro?
A: 增加了去星、缩星、降噪、裁剪、翻转功能。注意：Seestar 的 AI 处理（如智能降噪）是基于拍摄的图片进行智能处理，不会无中生有地创造细节。
- 去星：将缩星值拉到 100% 即可将画面中星点去除
- 缩星：适当减小过大的星点，降低星点对主体的干扰
- 降噪：升级后针对画面背景区域进行精细降噪
- 裁剪、翻转：提供基础画面编辑能力
A: Added star removal, star shrinking, denoising, cropping, and flipping functions. Note: Seestar AI processing (such as intelligent denoising) is based on the captured images and will not fabricate details that do not exist.
Q11: Seestar S50 Pro在白天使用时能追踪目标吗？ | Q11: Can Seestar S50 Pro track targets during daytime?
A: 白天使用观景模式，是可以追踪目标的。
A: During daytime, use Scenery Mode to track targets.
Q12: Seestar S50 Pro能在白天创建全景拼接图像吗？ | Q12: Can Seestar S50 Pro create panorama stitch images during daytime?
A: 暂不支持白天全景拼接，后续会开放，敬请期待。
A: Daytime panorama stitching is not yet supported, but will be available in a future update.
Q13: 在光害较高的环境下能拍摄银河吗？ | Q13: Can the Milky Way be photographed in high light pollution environments?
A: 拍摄银河、星野时，为保证效果，建议在光害等级5级及以下（Bortle 5 或更暗）的环境中进行拍摄。
A: For best results when shooting the Milky Way or star fields, it is recommended to shoot in environments with Bortle class 5 or below.
Q14: Seestar S50 Pro在地平式和赤道仪模式下的最大曝光时间是多少？ | Q14: What is the maximum exposure time in AltAz and EQ modes?
A: 地平式（AltAz）和赤道仪（EQ）模式下，长焦和广角镜头的最大曝光时间均为 60秒。
A: In both AltAz and EQ modes, the maximum exposure time for both telephoto and wide-angle lenses is 60 seconds.
Q15: Seestar S50 Pro的电源键有哪些操作方式？ | Q15: What are the different power button operations on Seestar S50 Pro?
A: 电源键支持以下操作：① 显示电量——关机状态下短按一次；② 开机——长按2秒（首次开机需短按1秒后再长按2秒）；③ 正常关机——长按2秒，镜头会归零位后关机；④ 强制关机——长按6秒，镜头不归零位直接关机（仅在正常关机无法完成时使用）。另外，在App「我的」页面底部也可滑动关机。
A: The power button supports: ① Show battery — short press once while powered off; ② Power on — long press 2s (first-time use: short press 1s then long press 2s); ③ Normal shutdown — long press 2s, lens returns to zero position; ④ Forced shutdown — long press 6s, lens does NOT return to zero position (use only when normal shutdown fails). You can also use the swipe-to-shutdown function in the App's "My" page.
Q16: Seestar S50 Pro的电源指示灯各种状态代表什么？ | Q16: What do the different power indicator states mean on Seestar S50 Pro?
A: 电源指示灯状态含义如下：① 开机过程——红色跑马灯顺时针两圈，再流水灯顺时针亮满一圈；② 已连接（经纬仪模式）——黄色常亮；③ 已连接（赤道仪模式）——绿色常亮；④ 图像增强中（实时叠加）——黄色/绿色呼吸灯（慢速）；⑤ 固件升级中——黄色快闪；⑥ 开机失败——红色闪烁，同时4个电量灯快速闪烁（请先充电后重试，仍无法开机请联系售后）。
A: Power indicator states: ① Booting — red running light clockwise for 2 loops, then fills up; ② Connected (AltAz mode) — solid yellow; ③ Connected (EQ mode) — solid green; ④ Live stacking — slow breathing light (yellow/green); ⑤ Firmware updating — rapid yellow flashing; ⑥ Boot failure — red flashing with all 4 battery lights blinking rapidly (charge the device first; if it persists, contact support).
Q17: Seestar S50 Pro有哪些观测/拍摄实用技巧？ | Q17: What practical tips are there for observation/photography with Seestar S50 Pro?
A: ① 建议至少有45°的开阔天空，避免周边障碍物遮挡观测目标；② 初学者建议从较亮的深空天体开始，如M31（仙女座星系）、M42（猎户座大星云）、NGC104（杜鹃座球状星团）；③ 远离街灯、建筑安全灯等直接光源以减少光污染影响；④ 拍摄时不要在设备周围走动，避免震动影响叠加成功率；⑤ 多云和强风天气会影响观测质量；⑥ 可在星图中使用"构图"功能调整视野范围，实现更自由的拍摄构图。
A: ① Have at least 45° of unobstructed sky to avoid obstacles blocking targets; ② Beginners should start with brighter deep-sky objects like M31 (Andromeda), M42 (Orion Nebula), and NGC104 (47 Tucanae); ③ Stay away from streetlights and direct light sources; ④ Avoid walking around the device during shooting to prevent vibrations; ⑤ Cloudy and windy conditions affect observation quality; ⑥ Use the "Composition" function in Sky Atlas for more flexible framing.
Q18: Seestar S50 Pro如何启用桥接网络（Station Mode）？ | Q18: How to enable bridge network (Station Mode) on Seestar S50 Pro?
A: 如果在阳台、庭院或其他有Wi-Fi网络覆盖的地方观测，可以在S50 Pro的网络设置中启用桥接网络（Station Mode），将S50 Pro接入家庭/场地Wi-Fi。之后用于观测的手机只需与S50 Pro处于同一局域网中即可连接操控，不受S50 Pro自带Wi-Fi的10m传输距离限制。
A: When observing from a balcony, courtyard, or any location with Wi-Fi coverage, enable Station Mode in the S50 Pro's network settings to connect it to your local Wi-Fi. Your phone then only needs to be on the same network to control the device, bypassing the 10m range limit of S50 Pro's built-in Wi-Fi.
Q19: 使用Seestar S50 Pro有哪些安全注意事项？ | Q19: What safety precautions should be followed when using Seestar S50 Pro?
A: ① 未配备太阳滤镜时，严禁直接观测太阳——会导致设备不可逆损坏；② 未成年人需在成人监护下使用；③ 请使用正规充电器（最大支持12V/3A），ZWO不对不合规充电器造成的损坏负责；④ 私自拆解、改装的产品不享受保修；⑤ 避免淋水或进灰，不用时妥善保存；⑥ 前镜头只能用光学专用湿巾清洁，不得接触玻璃窗、布、液体等；⑦ 建议在-10°C至40°C环境下使用；⑧ 不要使用化学溶剂清洁产品；⑨ 远离明火防止电池爆炸；⑩ 不要在大于3级风力的天气下使用；⑪ 存放于干净干燥处（室温低于60°C，湿度低于50%）；⑫ 低温下电池容量会衰减，属锂电池正常特性。
A: ① Never observe the sun without a solar filter — causes irreversible damage; ② Minors must use under adult supervision; ③ Use only qualified chargers (max 12V/3A); ④ Unauthorized disassembly voids warranty; ⑤ Avoid water and dust exposure; ⑥ Clean the lens only with optical wipes — never use cloth, glass surfaces, or liquids; ⑦ Recommended operating range: -10°C to 40°C; ⑧ Do not use chemical solvents; ⑨ Keep away from open flames; ⑩ Do not use in wind exceeding Force 3; ⑪ Store in a clean, dry place (below 60°C, below 50% humidity); ⑫ Battery capacity degrades in cold temperatures — this is normal for lithium batteries.
故障排查类 | Troubleshooting
Q1: Seestar S50 Pro在赤道仪模式下如何使用脚架？ | Q1: How to use the tripod in equatorial mode on Seestar S50 Pro?
A: S50 Pro 标配脚架，赤道仪模式下请将脚架全开角度使用，获取更高稳定性以防止倾倒。若使用第三方脚架，请自行评估脚架支撑面、重心及风力等稳定性因素。
A: S50 Pro comes with a standard tripod. In equatorial mode, please use the tripod with fully opened legs for higher stability. If using a third-party tripod, please assess the stability factors yourself.
Q2: Seestar S50 Pro脚垫与快拆板干涉如何处理？ | Q2: How to handle Seestar S50 Pro foot pad interference with quick-release plates?
A: 首先推荐使用官方赤道仪配件。如果用户已有自己的云台快拆板遇到硅胶胶垫干涉问题，可以将脚垫拆掉（是胶粘的）即可使用。
A: First, the official equatorial mount accessory is recommended. If users have their own tripod quick-release plate and encounter silicone pad interference, the foot pad can be removed (it's glued on) for use.
Q3: Seestar S50 Pro与TH10云台能否一起使用？ | Q3: Can Seestar S50 Pro be used with the TH10 head?
A: 可以购买 TH10 云台搭配使用。如果您已拥有 TH10 云台，推荐购买新的 TH10 快装板 搭配以获得更高稳定性。也可以直接购买 S50 Pro + TH10 云台套装。
A: TH10 head can be purchased for use. If you already have a TH10 head, purchasing the new TH10 quick-release plate is recommended for better stability. The S50 Pro + TH10 head bundle is also available.
Q4: Seestar S50 Pro的.fit文件是否已去除暗场？ | Q4: Are the Seestar S50 Pro .fit files dark-free?
A: S50 Pro 暂时没有暗场校准，目前采用 Raw 智能降噪处理。
A: S50 Pro does not have dark calibration at this time, currently using Raw intelligent denoising.
Q5: Seestar S50 Pro无法开机怎么办？ | Q5: What should I do if Seestar S50 Pro fails to power on?
A: ① 电量不足：请先为S50 Pro充电（建议使用符合规格的充电器，5V/2A或12V/3A），充满后再尝试开机；② 开机失败指示灯判断：如果电源指示灯红色闪烁且4个电量灯快速闪烁，说明开机失败，先充满电再试；③ 如果充电后仍无法开机，可能是硬件故障，请联系售后技术人员。注意：首次开机需短按1秒后再长按2秒。
A: ① Insufficient battery: Charge the S50 Pro first (use a compliant charger, 5V/2A or 12V/3A), then try powering on after a full charge; ② Boot failure indicator: If the power light flashes red and all 4 battery lights blink rapidly, the boot has failed — fully charge and retry; ③ If it still fails after charging, it may be a hardware issue — contact after-sales support. Note: For first-time use, short press 1s then long press 2s to power on.
Q6: Seestar S50 Pro电池电量过低时会自动关机吗？ | Q6: Will Seestar S50 Pro automatically shut down when battery is critically low?
A: 电池电量低于5%，设备将自动归零位关机。
A: When the battery level drops below 5%, the device will automatically return to the zero position and shut down.
Q7: Seestar S50 Pro 电池指示灯比 S50 暗很多，是故障吗？ | Q7: The battery indicator lights on S50 Pro are much dimmer than on S50 — is this a defect?
A: 不是故障。Seestar S50 Pro 的电池指示灯采用红色 LED，且只有4 颗，而初代 S50 指示灯为白色 LED，共5 颗。红色相对白色人眼敏感度低，所以主观感觉"暗"。两款设备的指示灯设计亮度标准均符合产品规格。关于 App 里的指示灯亮度设置：请在 App "我的-偏好设置-指示灯亮度" 中调节。
A: This is not a defect. The Seestar S50 Pro uses red battery indicators with only 4 LEDs, whereas the original S50 uses white indicators with 5 LEDs. Red LEDs appear dimmer to the human eye compared to white ones, which may give the subjective impression of being "dim". Both models meet the product's brightness specification standards. Regarding the indicator brightness setting in the App: Please adjust it in the App under "Me-Preferences-Indicator Brightness".
产品对比类 | Product Comparison
Q1: Seestar S50 Pro和S30 Pro怎么选择？ | Q1: How to choose between Seestar S50 Pro and S30 Pro?
A:
- S50 Pro：采用 50mm 口径光学镜片，物理分辨率比 30mm 口径更高，细节呈现更佳。视野比 S30 Pro 小，更适合局部细节或小目标拍摄。
- S30 Pro：2026 年初产品，拥有更大视野，可覆盖更大目标，细节表现略差于 S50 Pro，兼顾星野摄影，体积更小巧轻便，是接触天文摄影的首台智能天文望远镜极佳选择。
A:
- S50 Pro: Uses 50mm aperture optical lens with higher physical resolution than 30mm, better detail rendering. Smaller FOV than S30 Pro, more suitable for local details or small targets.
- S30 Pro: 2026 early product, larger FOV covering larger targets, slightly weaker detail than S50 Pro, also supports star field photography, more compact and portable, ideal first smart telescope for astrophotography.
Q2: Seestar S50 Pro与Dwarf 3的对比优势有哪些？ | Q2: What are the advantages of Seestar S50 Pro compared to Dwarf 3?
A: S50 Pro 的核心优势在于"更大口径 + 更长焦距 + 更优光学设计"：
一、光学性能优势
- 更大口径：50mm vs Dwarf 3 的 35mm，集光面积约 2 倍
- 更长焦距：250mm vs 150mm，小面深空目标角分辨率更优
- 四片式 APO + 内置平场镜：4K 大靶面下边缘星点圆润锐利
二、软件生态优势
- Seestar App：实时叠加、自动寻星、跟踪精度更快捷
- 深度天文功能：天网&远程拍摄、星野摄影、银河延时视频、星轨摄影、8K 拼接、NFC 一触即连等
三、品牌与服务优势
- ZWO 全球售后网络：高品质口碑、全球服务覆盖、配件设备生态完整
A: Core advantages: larger aperture + longer focal length + superior optical design.
Q3: S30 Pro 具备的功能中，有哪些是 S50 Pro 不具备的？ | Q3: Are there any features that S30 Pro has but S50 Pro does not?
A: S30 Pro 具备的功能，S50 Pro 都具备。
A: All features available on S30 Pro are also available on S50 Pro.
质保与售后类 | Warranty & After-Sales
Q1: Seestar S50 Pro的质保政策是什么？ | Q1: What is the warranty policy for Seestar S50 Pro?
A: ZWO对自本公司购买的产品提供2年免费质保（电池为1年质保），自签收之日起计算。① 产品质量问题：收到30日内发现质量问题并经ZWO客服确认，提供免费换货；② 运输损坏：收到3日内提供外包装损坏图片和收货证明，经核实后提供退换服务。售后联系方式：国内用户关注振旺光电微信公众号联系客服；海外用户访问 https://support.zwoastro.com/ 提交服务工单；邮箱：info@seestar.com。
A: ZWO provides a 2-year free warranty (battery: 1-year warranty) from the date of receipt. ① Quality issues: Free replacement if confirmed within 30 days; ② Shipping damage: Refund/replacement if reported within 3 days with packaging photos and proof of receipt. Support: Chinese users — follow ZWO WeChat official account; Overseas users — visit https://support.zwoastro.com/ to submit a ticket; Email: info@seestar.com.
Q2: 哪些情况不属于Seestar S50 Pro的质保范围？ | Q2: What is NOT covered under the Seestar S50 Pro warranty?
A: 以下情况不在质保范围内（ZWO可提供付费维修服务）：① 超出质保期；② 进液、受潮腐蚀；③ 外力损伤（划痕、外壳变形、Type-C口断裂等）；④ 未经ZWO授权的拆机、第三方维修、改装翻新、刷机（下载错误固件）；⑤ 系统被更改或保修标示贴丢失；⑥ 未按说明安装使用造成的问题；⑦ 不可抗外力（水灾、火灾、地震、雷击等）；⑧ 操作不当导致的损坏；⑨ 无有效购买发票和保修凭证；⑩ 二手产品。注意：配件质量问题不作为退换主机的条件，可单独要求更换配件。
A: The following are NOT covered (paid repair available): ① Out of warranty period; ② Liquid ingress or corrosion; ③ External damage (scratches, deformed casing, broken Type-C port); ④ Unauthorized disassembly, third-party repair, modification, or wrong firmware; ⑤ Altered system or missing warranty seal; ⑥ Improper installation or use; ⑦ Force majeure (flood, fire, earthquake, lightning); ⑧ User error; ⑨ No valid proof of purchase; ⑩ Second-hand products. Note: Accessory defects are not grounds for replacing the main unit — request separate accessory replacement.
六、Seestar系列产品参数对比表 | 5. Parameter Comparison Table of Seestar Series Products
中文版参数对比 | Chinese version
| 产品名称 | Seestar S30 | Seestar S30 Pro | Seestar S50 | Seestar S50 Pro |
|---|---|---|---|---|
| 传感器 | 长焦：Sony IMX662 广角：支持 |
长焦：Sony IMX585 广角：Sony IMX586 |
IMX462 | 长焦：1/1.2英寸 CMOS 广角：1/2英寸 CMOS |
| 分辨率 | 长焦：1080×1920，竖画幅 广角：1920×1080，横画幅 |
长焦：2160×3840，竖画幅 广角：2160×3840，竖画幅 |
1080×1920 | 长焦：2160×3840，竖画幅 广角：2160×3840，竖画幅 |
| 视场 | 长焦：2.46° 广角：23.2° |
长焦：4.6° 广角：63° |
0.73°×1.29° | 长焦：2.8° 广角：63° |
| 有效光学口径 | 长焦：30mm | 长焦：30mm 广角：3.4mm |
50mm | 长焦：50mm 广角：3.4mm |
| 焦比 | f/5 | 长焦：F/5.3 广角：F/1.75 |
f/5 | 长焦：F/5.2 广角：F/1.75 |
| 光学焦距 | 150mm | 长焦：160mm 广角：6mm |
250mm | 长焦：260mm 广角：6mm |
| 光学类型 | 3片式复消色差APO | 4片式复消色差APO | 3片式APO | 4片式复消色差APO |
| 存储空间 | 64GB（可用约50GB） | 128GB（可用约100GB） | 64GB（可用约50GB） | 128GB（可用约100GB） |
| 电池容量 | 6000mAh | 6000mAh | 6000mAh | 10000mAh |
| 续航时间 | 约6小时 | 约6小时 | 约6小时 | 9小时（ZWO实验室测试数据） |
| 工作温度 | -10℃-40℃ | -10℃-40℃ | -10℃-40℃ | -10℃-40℃ |
| 充电温度 | 0℃-40℃ | 0℃-40℃ | 0℃-40℃ | 0℃-40℃ |
| 机身尺寸 | 210×140×80mm | 210×140×80mm | 142.5×130×257mm | 268×140×149mm（望远镜闭合状态） |
| 机身重量 | 1.65kg | 1.65kg | 2.5kg | 2.8kg（不含脚架） |
| NFC功能 | 不支持 | 支持 | 不支持 | 支持 |
| 银河/星轨模式 | 不支持 | 支持 | 不支持 | 支持 |
English version
| Specification | Seestar S30 | Seestar S30 Pro | Seestar S50 | Seestar S50 Pro |
|---|---|---|---|---|
| Sensor | Telephoto: Sony IMX662 Wide-angle: Sony IMX462 |
Telephoto: Sony IMX585Wide-angle: Sony IMX586 | Sony IMX462 | Telephoto: 1/1.2" CMOS Wide-angle: 1/2" CMOS |
| Resolution | Telephoto: 1080 × 1920 (Portrait) Wide-angle: 1920 × 1080 (Landscape) |
Telephoto: 2160 × 3840 (Portrait)Wide-angle: 2160 × 3840 (Portrait) | 1080 × 1920 | Telephoto: 2160 × 3840 (Portrait) Wide-angle: 2160 × 3840 (Portrait) |
| Field of View (FOV) | Telephoto: 2.46°Wide-angle: 23.2° | Telephoto: 4.6°Wide-angle: 63° | 0.73° × 1.29° | Telephoto: 2.8° Wide-angle: 63° |
| Effective Aperture | Telephoto: 30 mm | Telephoto: 30 mmWide-angle: 3.4 mm | 50 mm | Telephoto: 50 mm Wide-angle: 3.4 mm |
| Focal Ratio | f/5 | Telephoto: f/5.3Wide-angle: f/1.75 | f/5 | Telephoto: f/5.2 Wide-angle: f/1.75 |
| Focal Length | 150 mm | Telephoto: 160 mmWide-angle: 6 mm | 250 mm | Telephoto: 260 mm Wide-angle: 6 mm |
| Optical Design | 3-element Apochromatic (APO) Lens | 4-element Apochromatic (APO) Lens | 3-element APO Lens | 4-element Apochromatic (APO) Lens |
| Storage Capacity | 64 GB (Approx. 50 GB available) | 128 GB (Approx. 100 GB available) | 64 GB (Approx. 50 GB available) | 128 GB (Approx. 100 GB available) |
| Battery Capacity | 6000 mAh | 6000 mAh | 6000 mAh | 10000 mAh |
| Operating Time | Approx. 6 hours | Approx. 6 hours | Approx. 6 hours | Approx. 9 hours (ZWO lab test data) |
| Operating Temperature | -10°C to 40°C | -10°C to 40°C | -10°C to 40°C | -10°C to 40°C |
| Charging Temperature | 0°C to 40°C | 0°C to 40°C | 0°C to 40°C | 0°C to 40°C |
| Dimensions | 210 × 140 × 80 mm | 210 × 140 × 80 mm | 142.5 × 130 × 257 mm | 268 × 140 × 149 mm (Telescope in closed position) |
| Weight | 1.65 kg | 1.65 kg | 2.5 kg | 2.8 kg (without tripod) |
| NFC Support | No | Yes | No | Yes |
| Equatorial / Star Trail Mode | No | Yes | No | Yes |
